Shelf-Mount Spool Holder
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~35 g
- Print time
- ~1.9 h
- Express shipping
- $20
More information
Originally designed for Bunnings garage shelving units with 11.7 mm holes in the legs. Can be used on other shelves/holes.
Suits up to 75mm depth spools, plastic or cardboard.
Hole Dimensions
Diameter
Min: 9.85mm
Max: 12mm for stability, 25mm absolute max
Thickness
Min: strong enogh to hold a spool (tested 1mm)
Max: 5mm
Print settings
Note that I printed at high infill & perimeter count and this feels very solid. You could get away with lower values.
Nozzle diameter
0.4 mm
Layer height
0.2 mm
Infill density
Spool holder: 5%

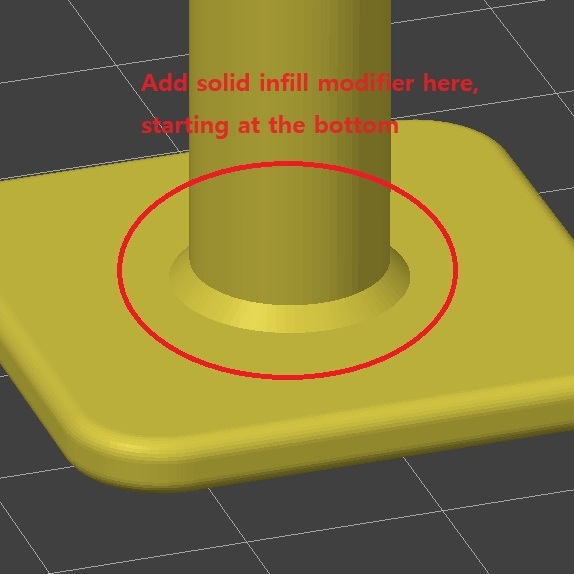

Mount: ≥30% (Add solid infill modifier where flat plate transitions to cylinder, check images)
Perimeter count
Spool holder: 3 perimeter, 3 top/bottom
Mount: 4 perimeter, 3 top/bottom
Supports
None
Material
PLA
Design and description by Sand , licensed CC-BY-SA.
Frequently asked
How long does shipping take?
Shelf-Mount Spool Holder is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
