Sliding Door guide
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~29 g
- Print time
- ~1.6 h
- Express shipping
- $20
More information
Sliding guide thingo width is 3.5mm, to fit a door with a slot of 4mm or greater (ours is about 5mm)
Our plastic door-slide guide broke because someone pushed on it instead of sliding it, repeatedly.

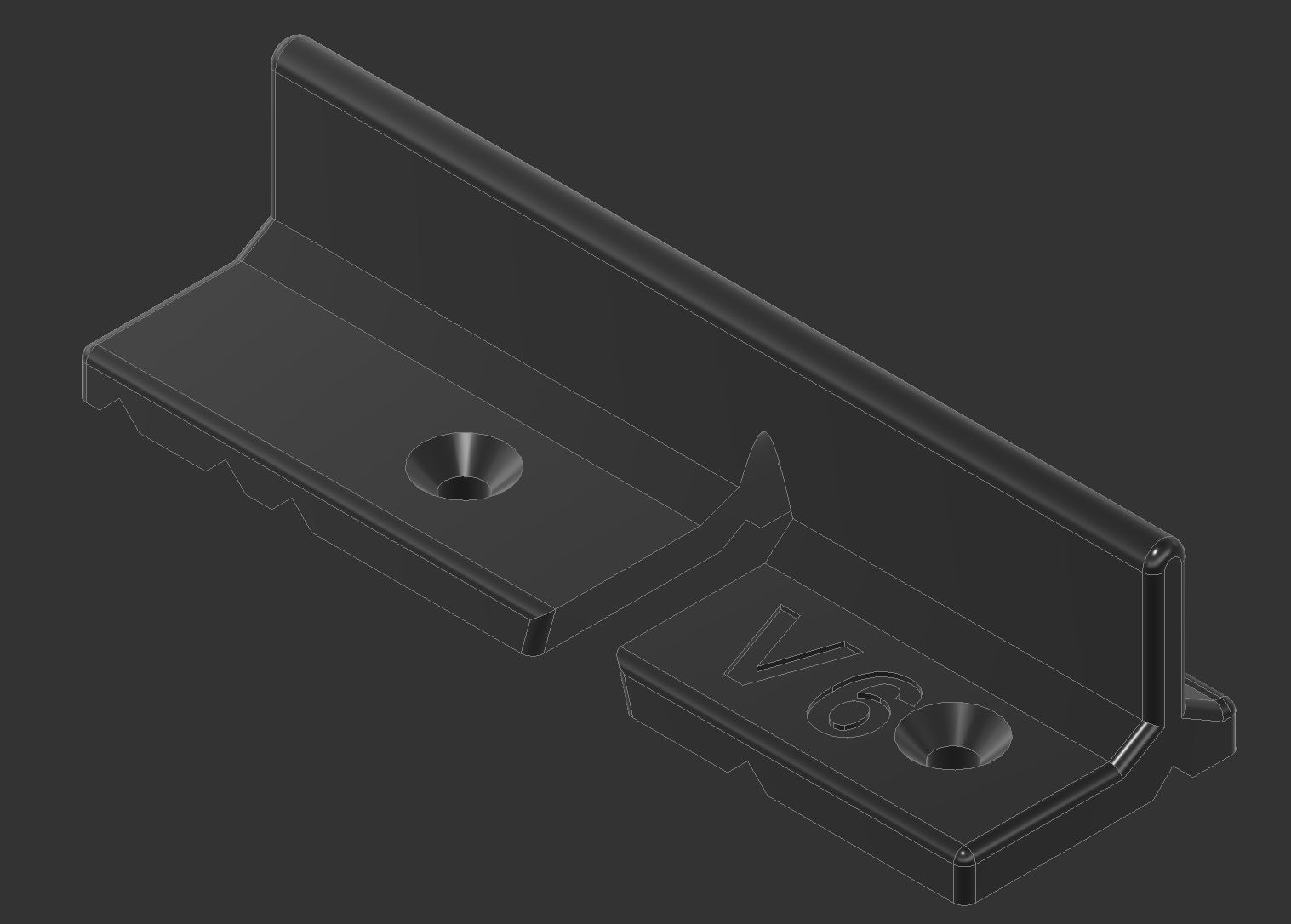

This was quick to model but I went through a few versions figuring out how to best reinforce it and match the existing screw holes, which is why they aren't evenly spaced.
Printed in Anycubic Tough Resin with no supports, this should work in ABS or PETG with no issues either.
Screws inserted after printing but before curing.
3x 15mm long M2 countersunk machine screws are inserted from the bottom after printing, this provides the reinforcement that will stop the part from cracking when someone pushes on the door instead of sliding it.

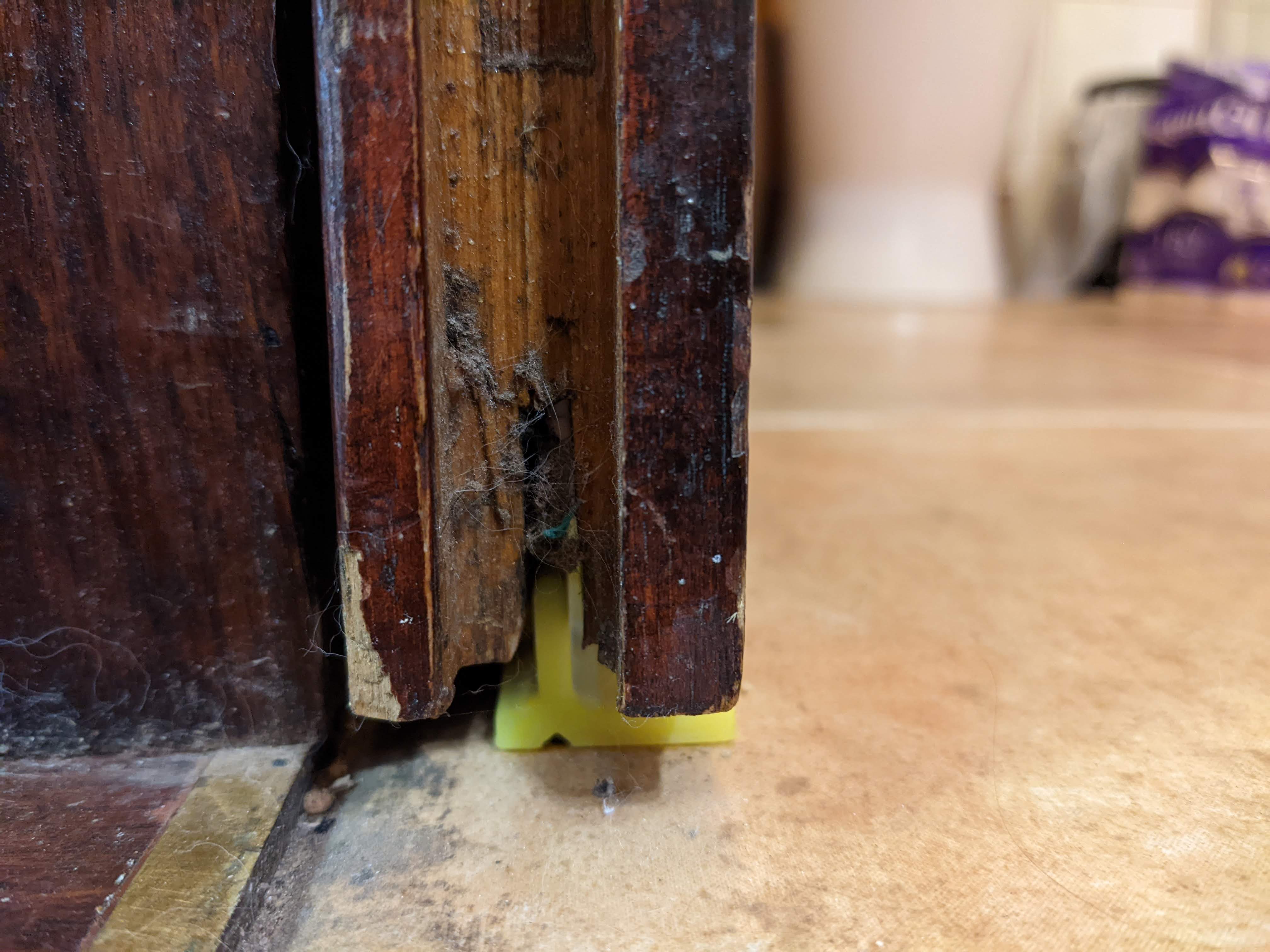

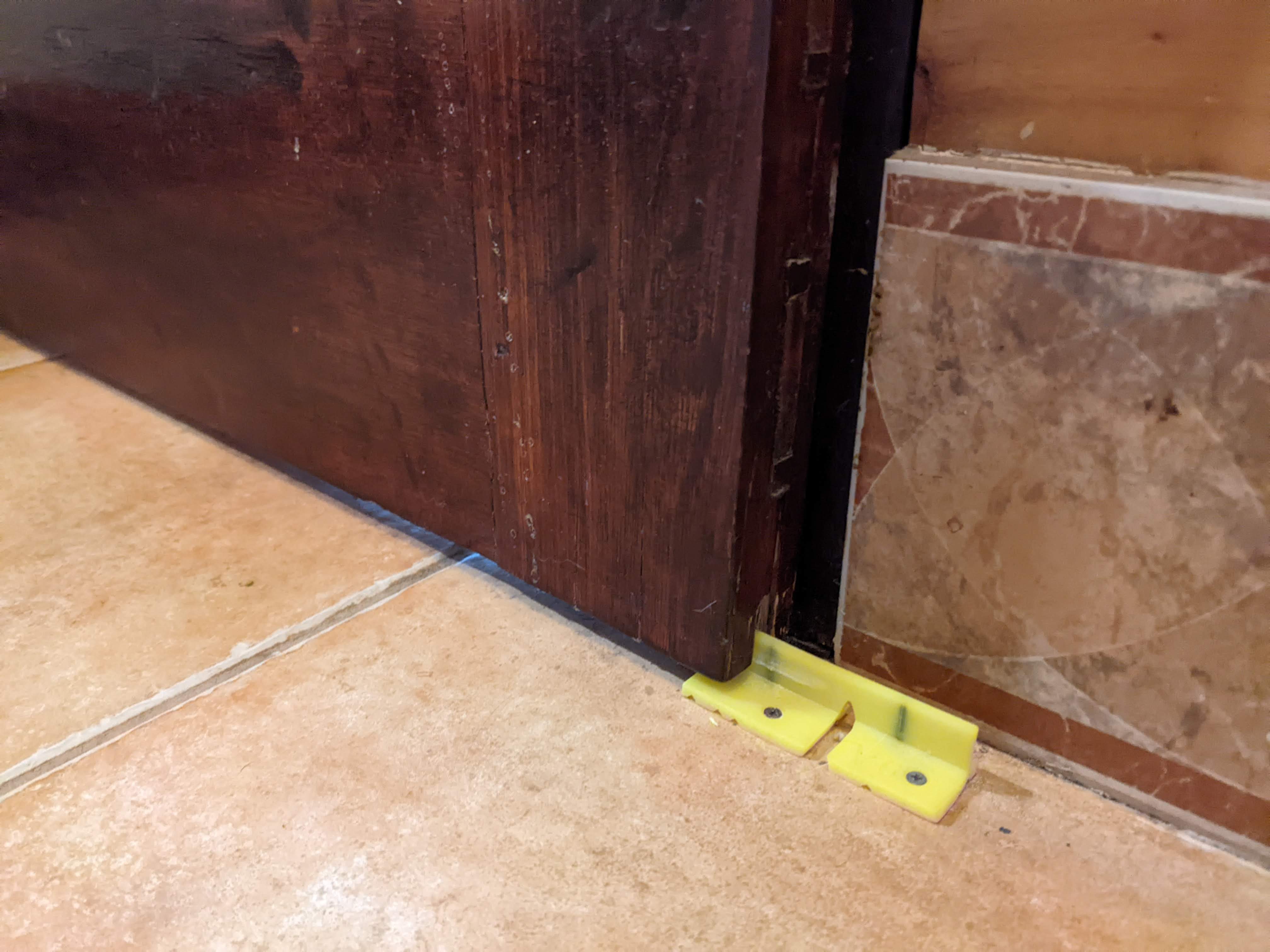

Has been working great for a few months now.
Design and description by camdotcam , licensed CC-BY.
Frequently asked
How long does shipping take?
Sliding Door guide is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
