Small Component Storage Box Compartment

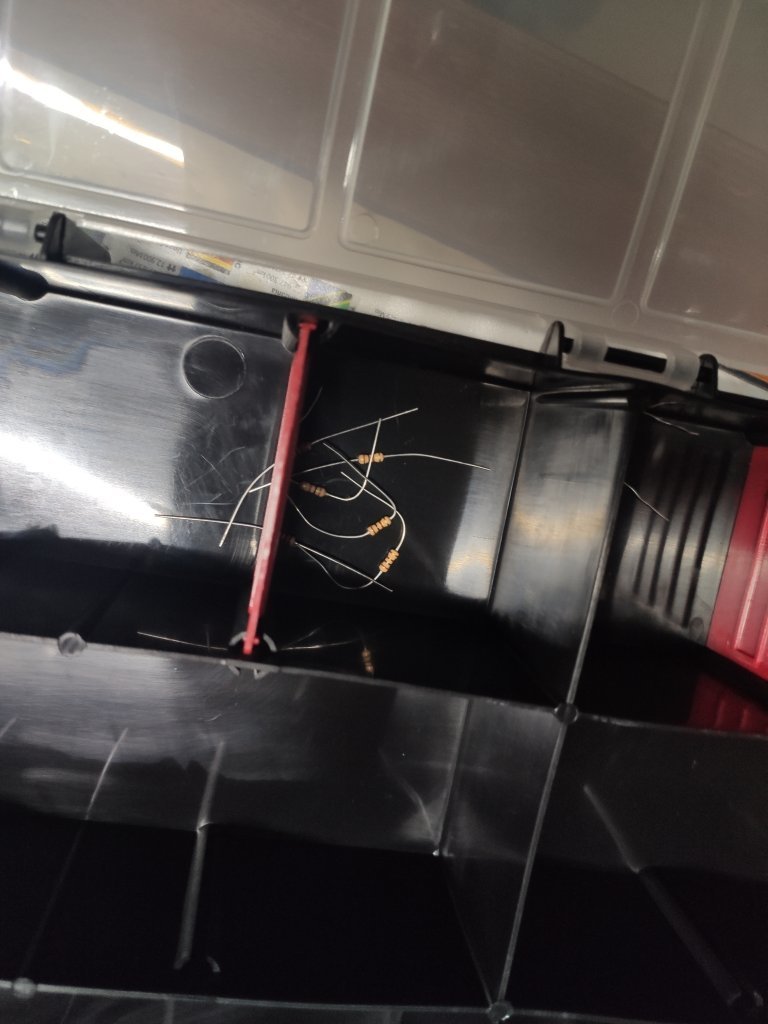

Have a small parts box that has customizable walls for changing the size of the compartments, which I use for storing various values of resistors. The problem with it was that resistors kept getting beneath the division walls. I am not too keen on gluing the walls permanently, in case I might want to store larger parts in the future

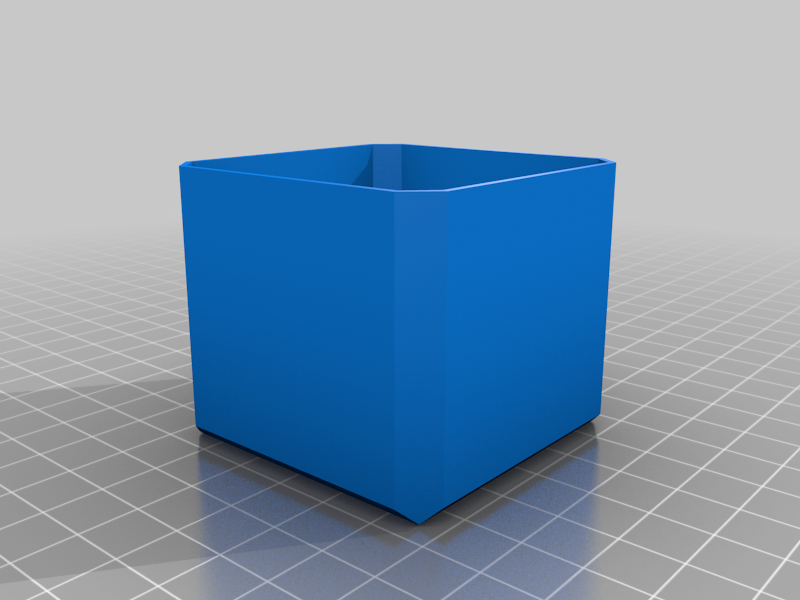

So I came up with these compartments that fit exactly in the sections and use the grooves that were meant for the division walls to keep them (the compartments) in place. There is also a 2x1 version for larger components.

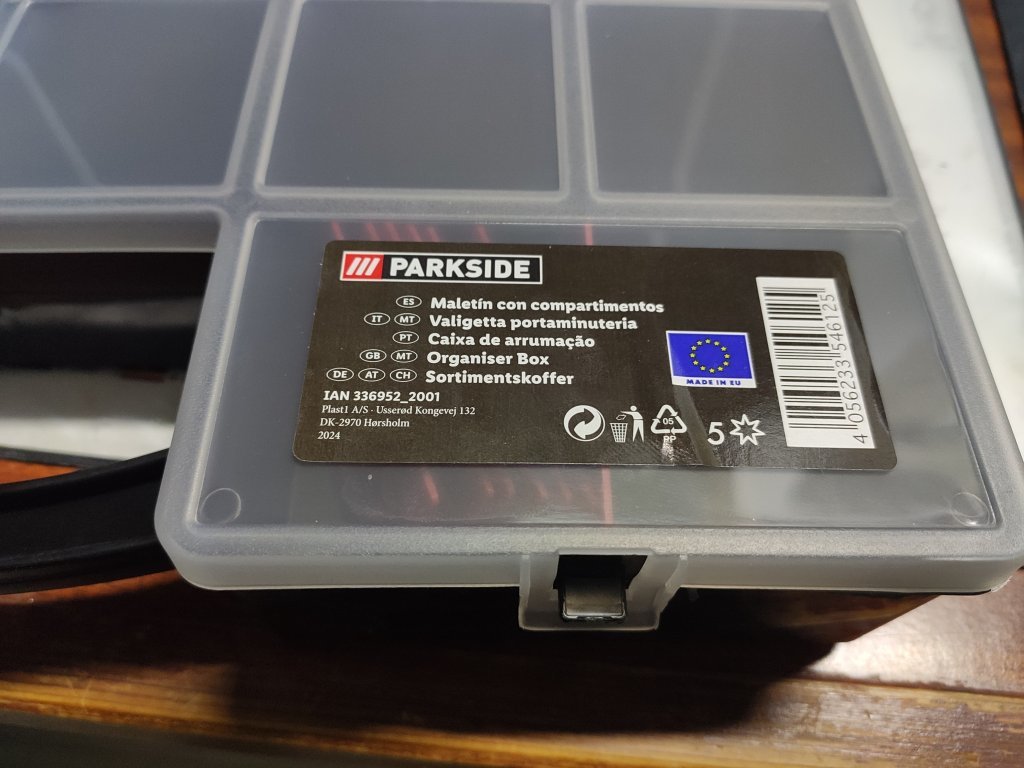

The compartments were designed for a specific tool box I got from Lidl, but they might fit other boxes. In this case the section size is 57x57x49mm.

Author's 3D printing Facebook page: https://www.facebook.com/3DPrintNoob

Print Settings

Printer Brand:

Creality

Printer: CR-10S

Rafts:

No

Supports: Yes

Resolution:

0.2

Infill: 25%

Filament: Any PLA White

Category: Electronics

Design and description by Osprey , licensed CC-BY.
