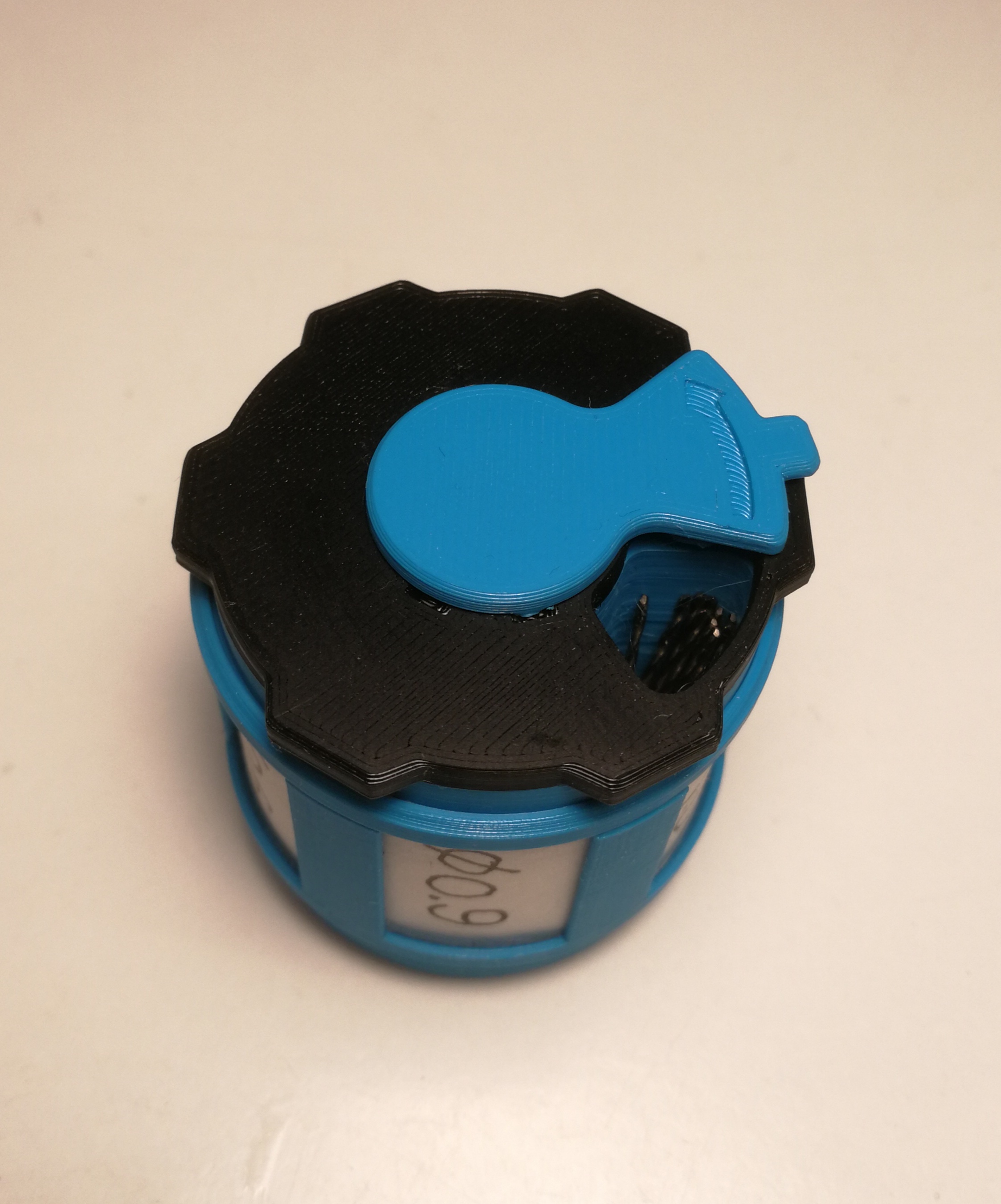

Storage container for tiny drill bits

This is a compact and safe storage container for e.g. tiny drills. No supports, screws or glue are required!

How it works: https://drive.google.com/file/d/1RTEZt9Z_nOt8kWUA40qcmh3ZGYbOgRwQ/view?usp=sharing

This container is designed to prevent the risk of mixing up multiple different drills in the event of knocking over the container while open.

Assembly

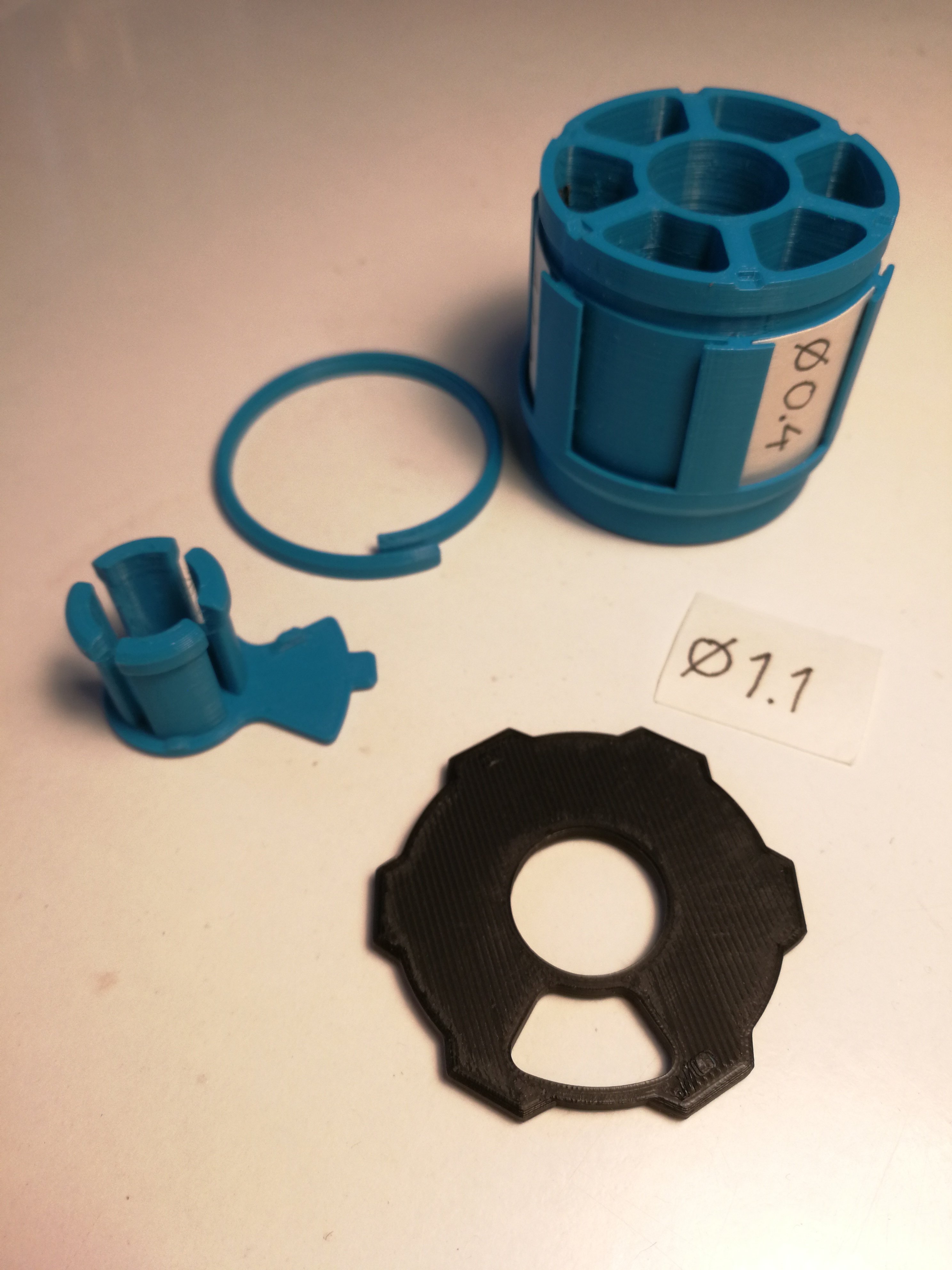

• Push drill_box_cover through drill_box-top. • Cut rectangular labels 18x24mm from paper, insert them into the slots on the side of drill_box_base. • Snap drill_box_ring into the slot above the labels. • Push the assembled drill_box_top into drill_box_base.

Print instructions

• Print without supports • use 0.15 layer height for drill_box_base and drill_box_cover

Remarks:

You may need to clean slots for the paper labels if you experience slight stringing.

Design printed from PLA, no other materials tested.

Design and description by frangerhawer , licensed CC-BY-SA.
