Super Clamp for Modular Mounting System (16mm)
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~83 g
- Print time
- ~4.6 h
- Express shipping
- $20
More information
This clamp came from my search for a quick-attach clamp that was easy to 3d print for a system I am building.
While it doesn't have high enough grip friction for my initial requirements, I think it is potentially useful enough to share.

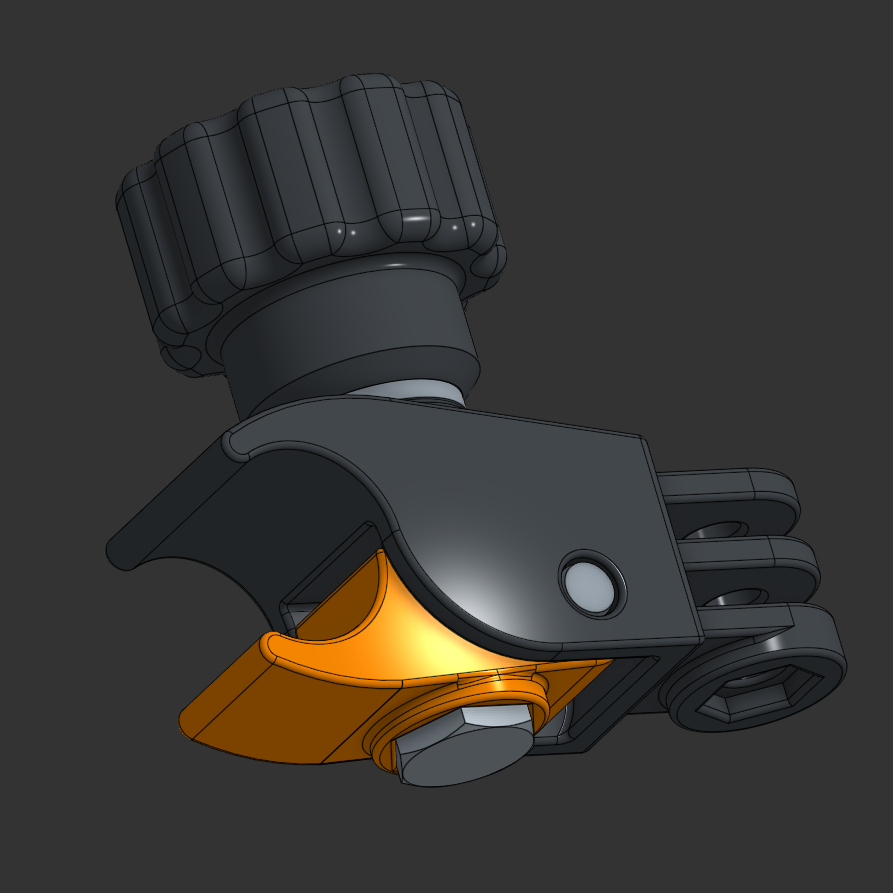

There are two versions, one with the mounting tabs inline with the tube and one turned 90 degrees. You only need to print the outer jaw that you need - the inner jaw is the same for both.

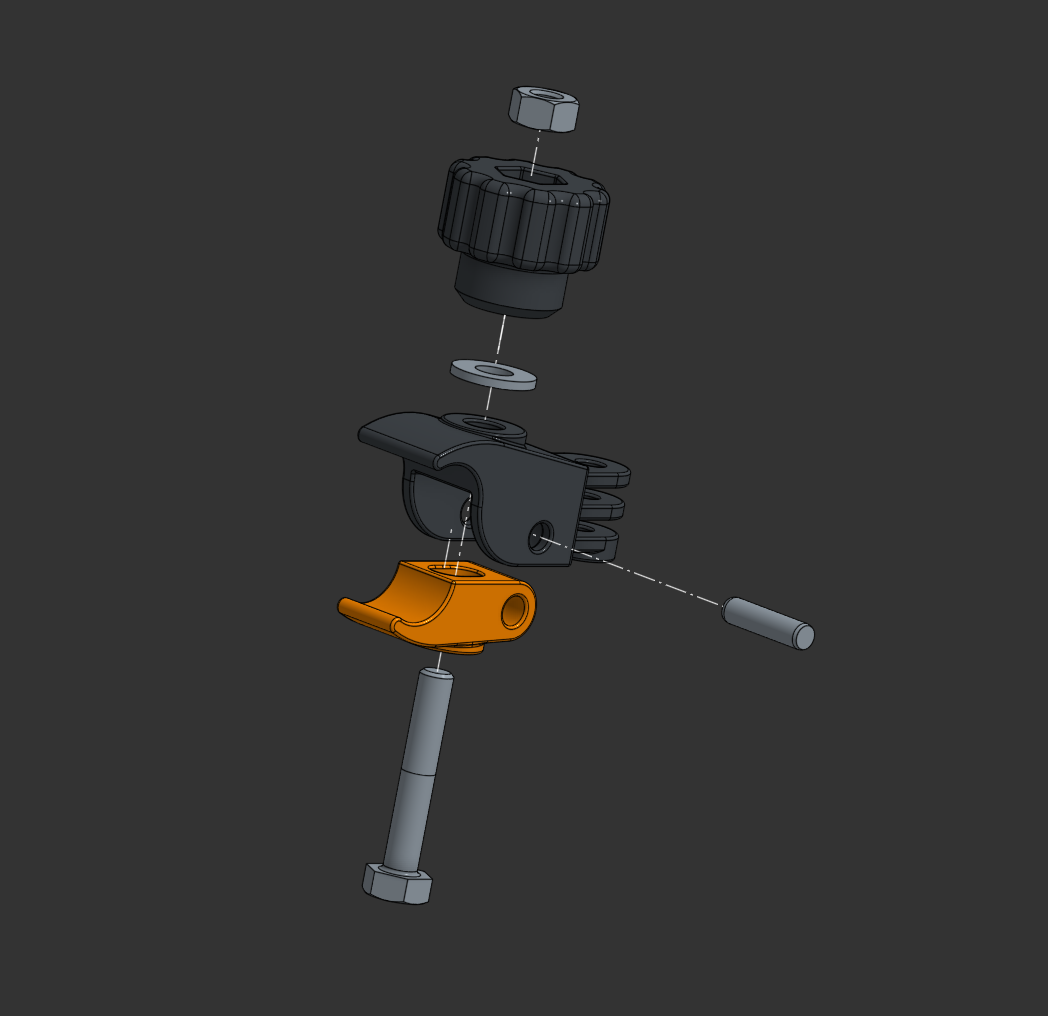

The hinge pin uses 5mm x 20mm steel pins from Amazon. The fit is intentionally snug, I push them in with a press or tap them in carefully with a hammer. Alternatively, you can use an M5-0.80 x 30mm bolt with a nylon locking nut.

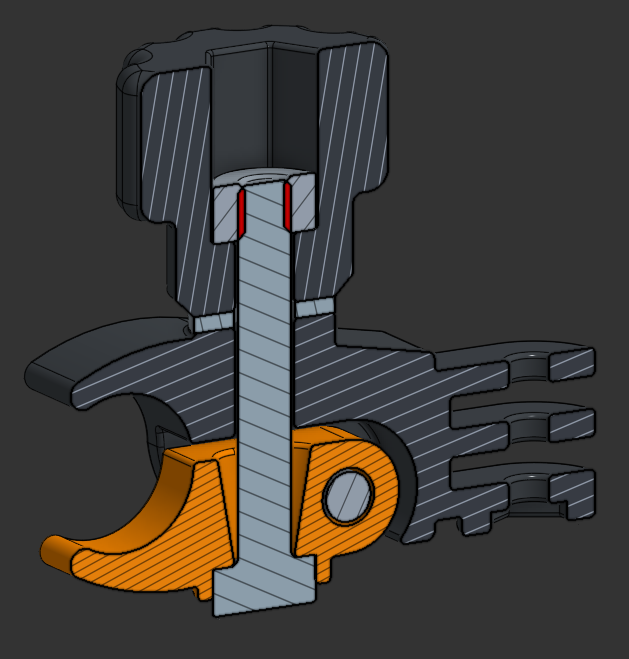

The clamping system uses a 1.5in 1/4x20 bolt, nut, and washer.
I've also included a .step without mounting tabs or any fillets for customization.
Link to configurable OnShape document: Super Clamp
Also check out my Configurable Bolt Knob to create knobs for this and other projects!
UPDATE 260105: Included a knob for convenience.
UPDATE 260128: Changed hinge pin to use commonly available M5 pins.
Design and description by YourRobotOverlord , licensed CC-BY.
