Supermicro harddisk tray for SSD and 2,5" Tray into LFF bays

For the famous (and nowadays super cheap second hand) Supermicro CSE-815 1U server chassis, I designed a hard disk caddy (hard drive tray) for 3,5 SATA/SAS HDDs.

I build a caddy / tray based on the original HDD MCP-220-00001 drive tray and made it to be printed out fast and (nearly) without support (See: https://www.thingiverse.com/thing:4137086 )

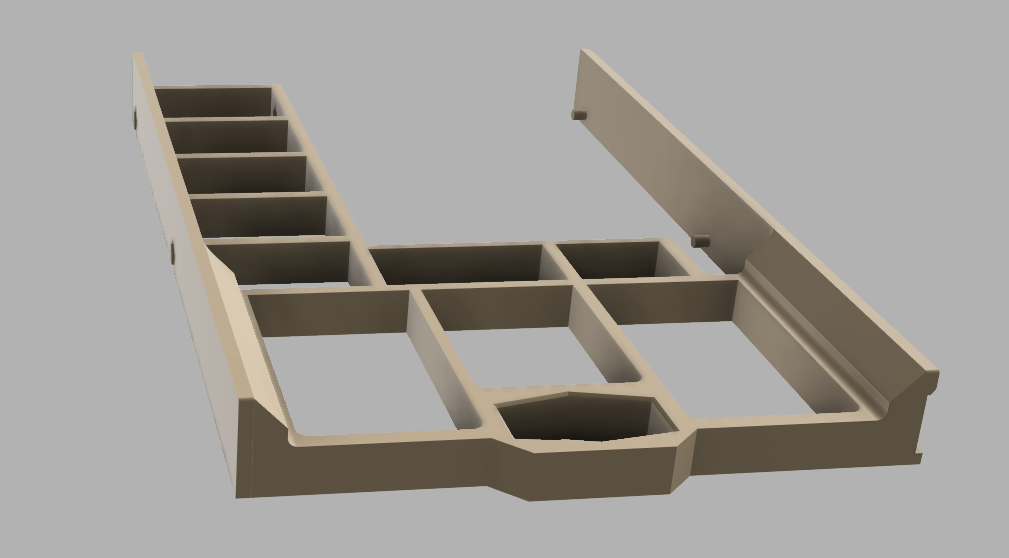

However, you can't use 2,5 inch drives or SATA SSDs with the adapter above, that's why I created a 2,5 inch version, which fits into the 3,5 Inch Drive bays of the mentioned Supermicro Servers.

Note

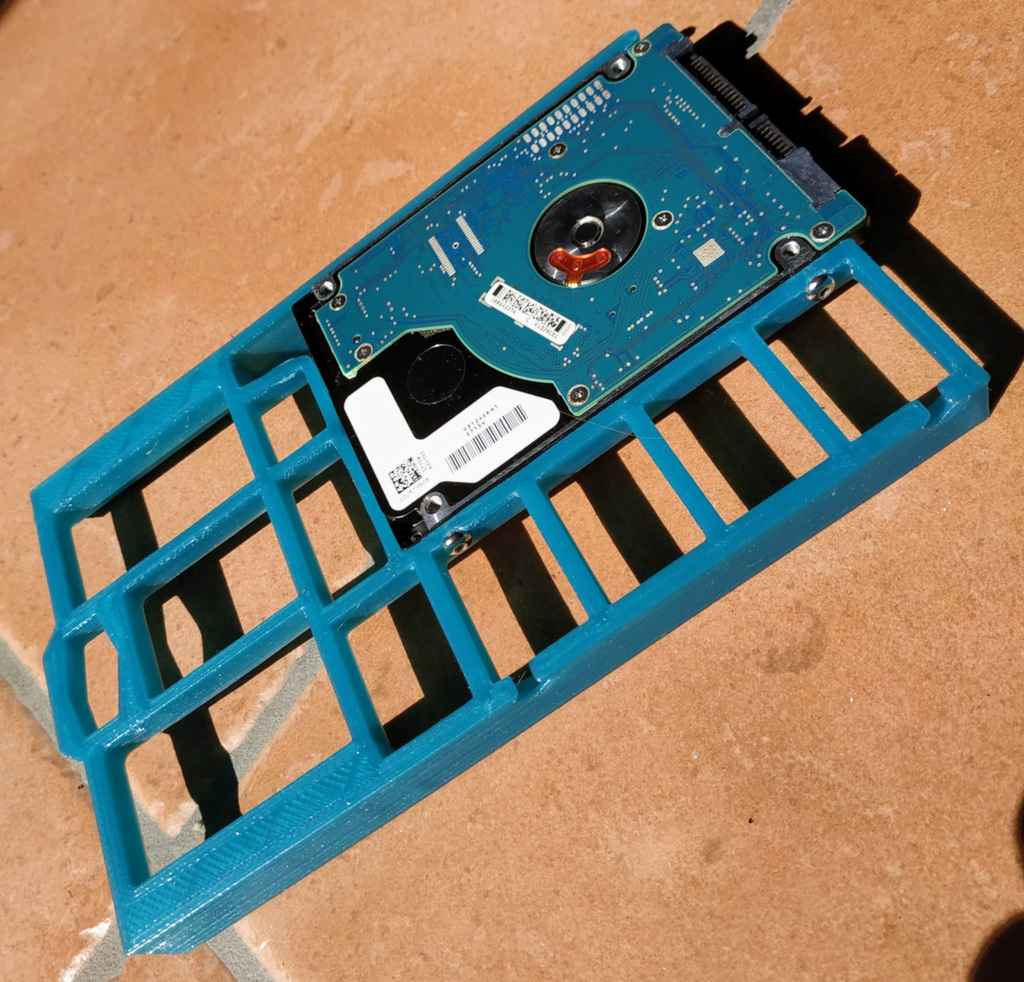

You don't need the special supermicro screws! Just use two standard 2,5" hdd fine pitch screws on one side. The other side does have little pins to keep it straight and secure.

This print should be an exchange for following supermicro hdd caddies:

MCP-220-00001-01

MCP-220-00024-0B

MCP-220-00075-0B

01-SC93301-XX00C104

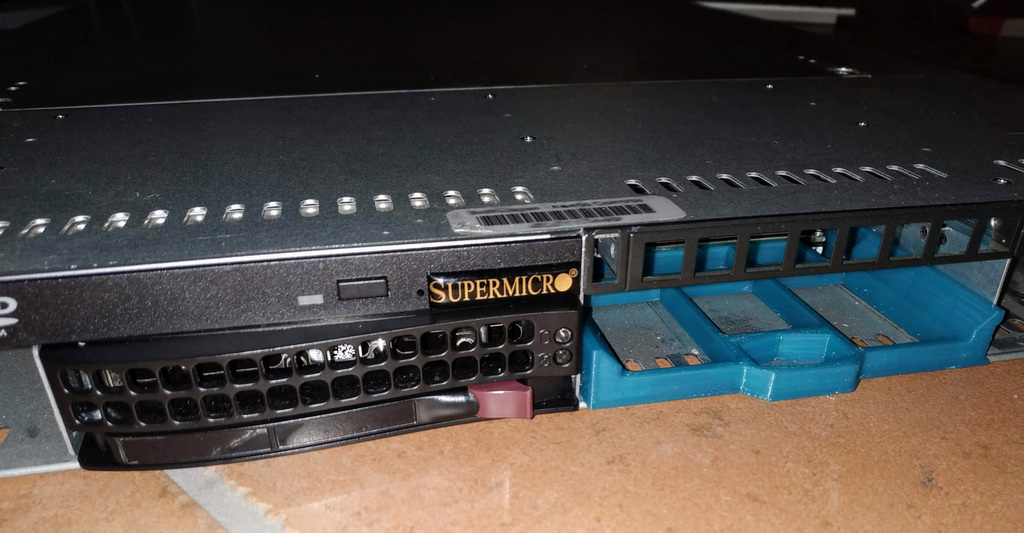

Which means, this caddy should be compatible with following Supermicro 1U server chassis:

CSE-813MFTQ

CSE-813MFTQC

CSE-813MTQ

CSE-813LT

CSE-815T

CSE-815TQ

CSE-819TQ

CSE-825TQ

CSE-826A

CSE-826BA

CSE-836BA

CSE-826BE1C

CSE-826BE26

CSE-826BE16

CSE-826E16

CSE-826E1

CSE-826BE16

CSE-826BE1C

CSE-826E2

CSE-826E2

CSE-826E26

CSE-828TQ

CSE-836BHE16

CSE-836BE16

CSE-842XTQ

CSE-846E1

CSE-846E1

CSE-847A

CSE-847E1C

CSE-848A

CSE-848E16

Update

I slightly fixed the pin size on "supermicro-caddy sff v4.stl" again, as the pins were slightly too large. I can recommend this "supermicro-caddy sff v4.stl". It is stable enough and you can use standard 2,5" harddisk/ssd screws.

Only as a second option I also made a screws-only versions, which requires the small supermicro screws.This "supermicro-caddy sff with screws v3" version doesn't need any support. but maybe the screws are in the ways for the bay walls.

Let me know your experiences in the comments.

Print Settings

Printer Brand:

Creality

Printer: Ender 3 Pro

Rafts:

Doesn't Matter

Supports: Yes

Resolution:

0.20

Infill: 20%

Filament:

OWL Filament PLA Doesn't Matter

Notes

It's basically a super easy print. You don't need much infill, the stability comes from the walls.

Support is only needed for the little pins on the right side. The additional time for these little pins is below 1 minute of print time.

Category: Electronics

Design and description by DanAndersen , licensed CC-BY.
