The Bloom - Charging Dock & Storage Solution for Philips 7000 Series

I've always needed a solution for my Philips 7000 series groomer to put everything in it, since my model comes with 15 different accessories I had to design one, also If I can solve charging while docking, that would be amazing. So I designed one.

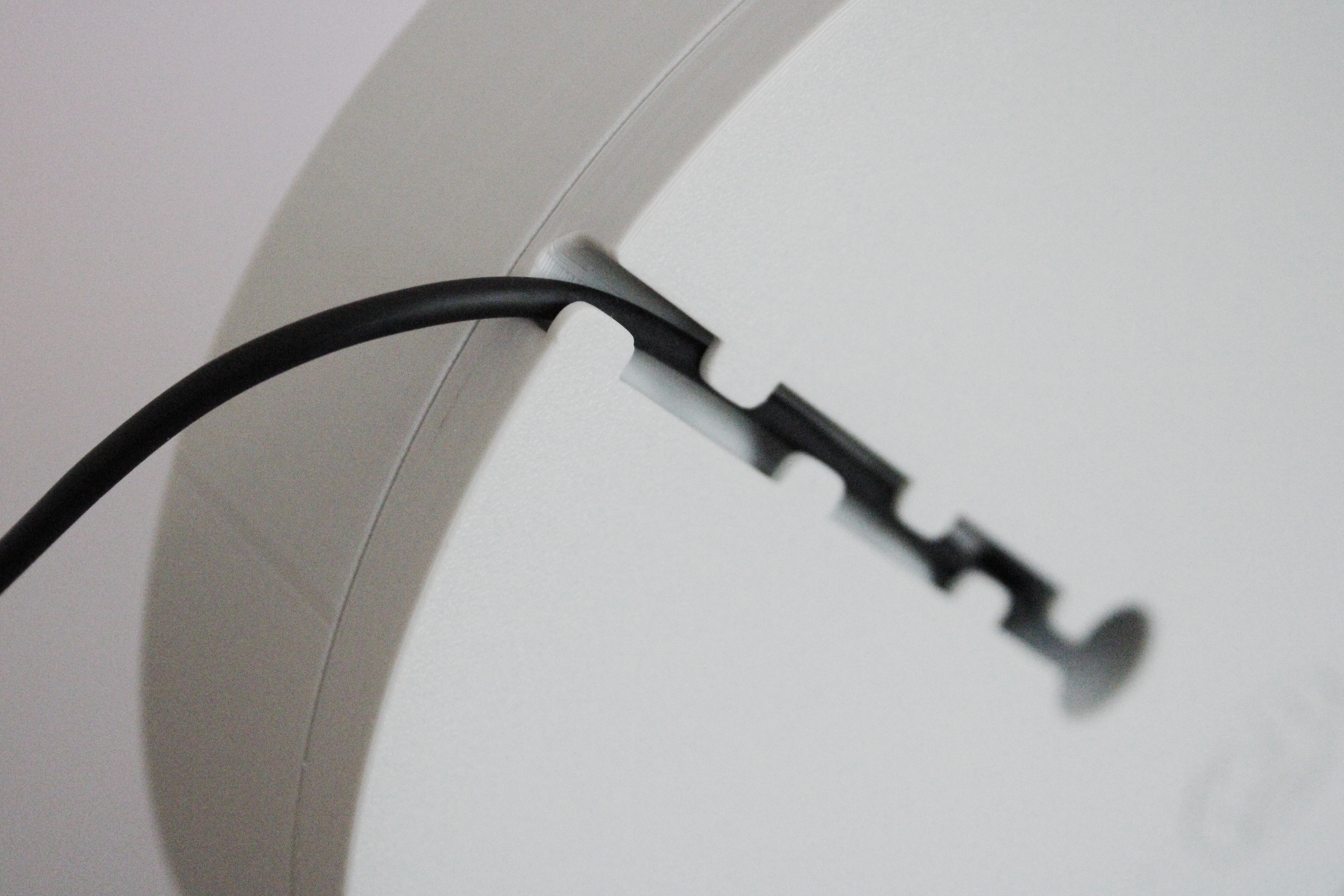

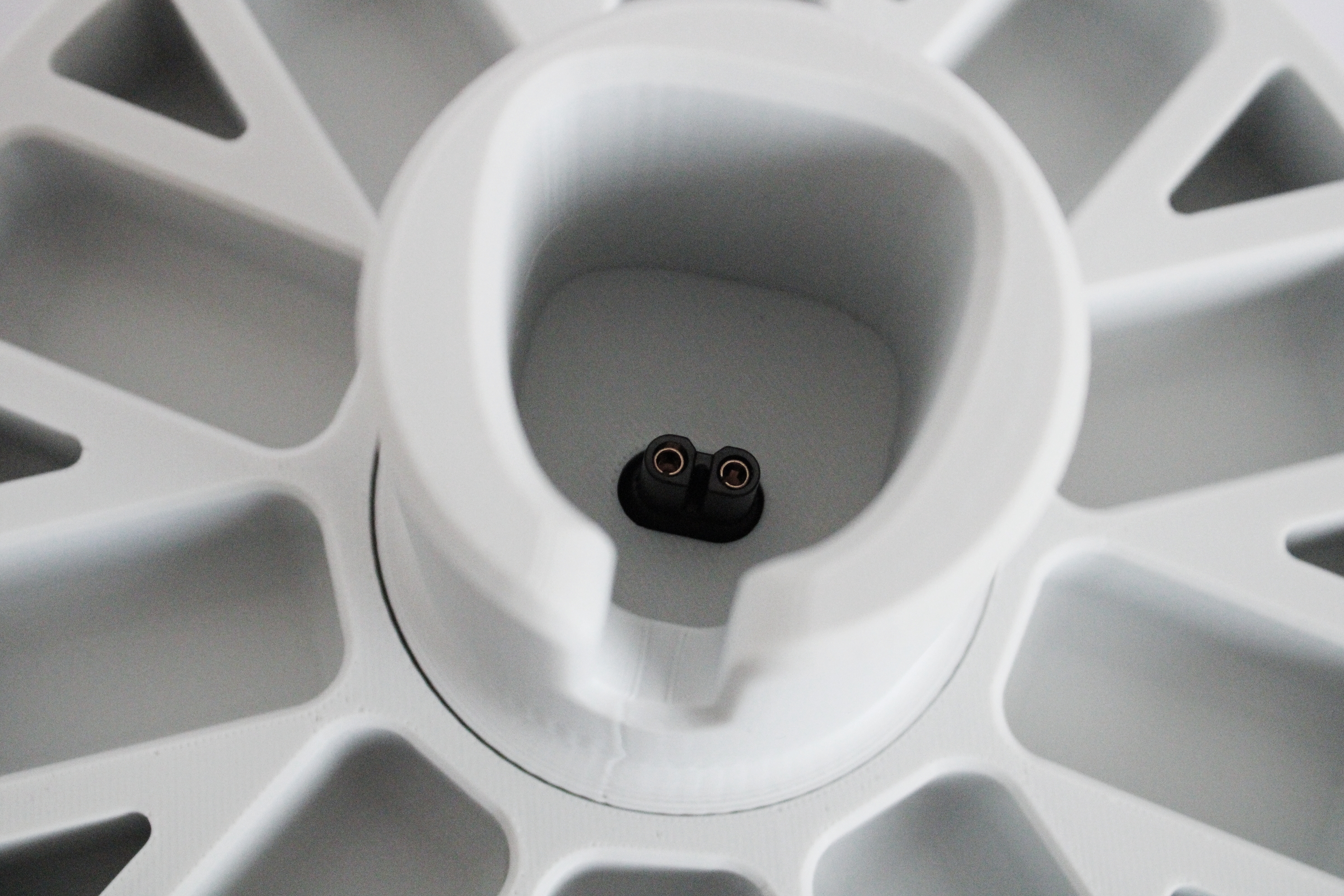

I have to use original charging cable but it's kind of hard to mount, I decided to make a sandwich like approach between two fixers. Material has to be softer than PLA or and other hard filament. I go with TPU with 40% infill. I didn't want to take a risk by damaging the connector. After many tries I have a working solution. However I do not take any responsibilities. If you are not sure, you might skip fixers and you can use routed cable directly but you have to unplug and plug it every time.

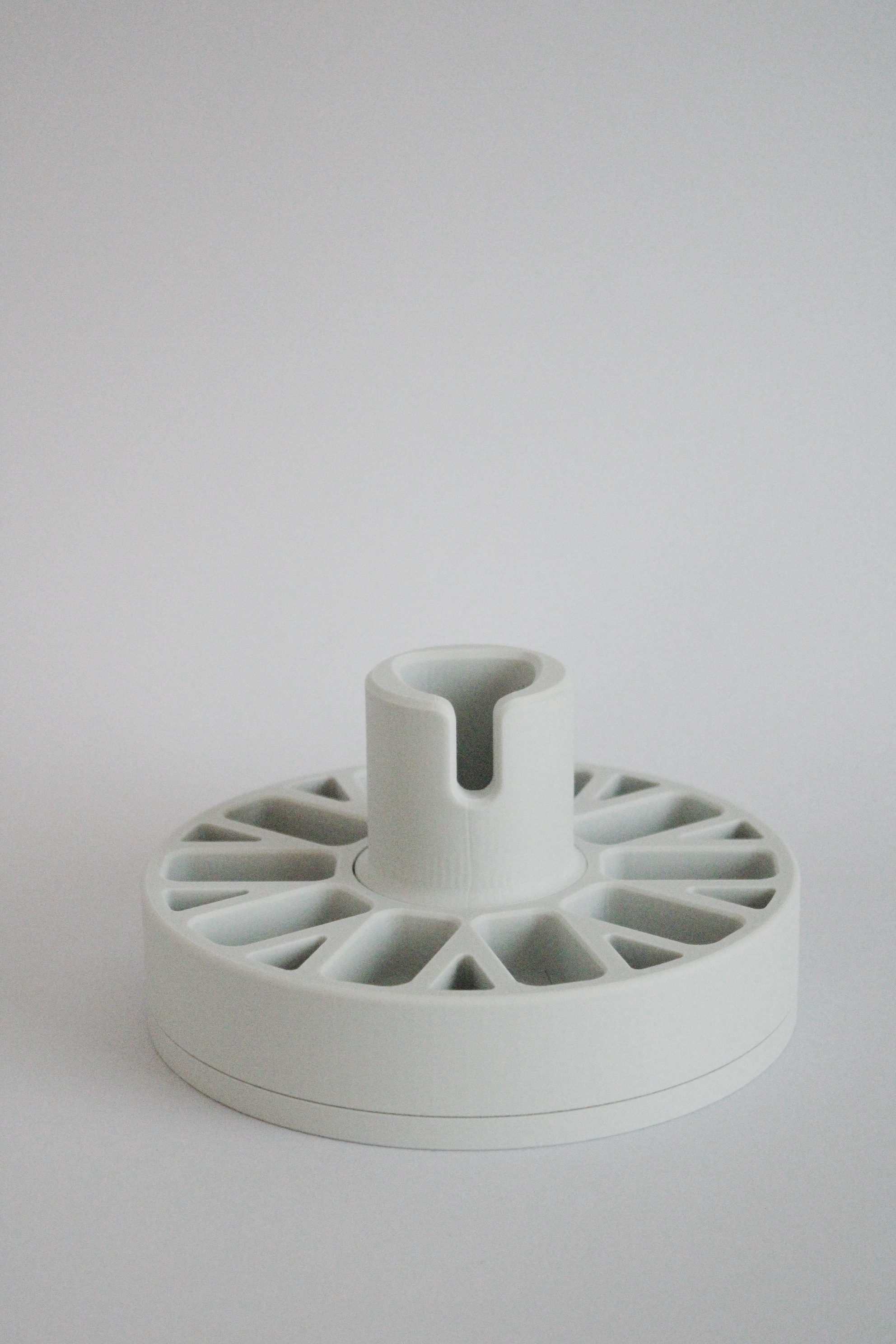

Accessory holder is actually a carousel, spin it to reach. In addition to hold fixers there is a part called Bloom_FixersHolder , screwing it is tricky so I made a Jig for it.

Here is my personal print settings;

• Layer Height: 0.2 • Infill: 40% • Walls: 4 • Support: Yes only for Bloom_GroomerHolder, the rest should be fine. • Materials: PLA & TPU (TPU are specified in file names) or you can completely skip based on your preferences.

Hope you like it.

Feel free to get help from assembly video;

Cheers!

Design and description by Chado , licensed CC-BY.
