Tool-less 2.5" Hard Drive Caddy/Sled for Supermicro Server (Press-Fit)(HDD or SSD)

Designed for the older generation but ubiquitous Supermicro Caddies. Part # SB16105 or MCP-220-00047-0B

HDD Status LED's are functional with additional 2mm AND 1mm fiber-optic cable. I've used THIS by searching "fiber optic 2mm" and "fiber optic 1mm" I have a pair of 2mm cables in the caddy face and a 1mm pair in the sled so they can separate.

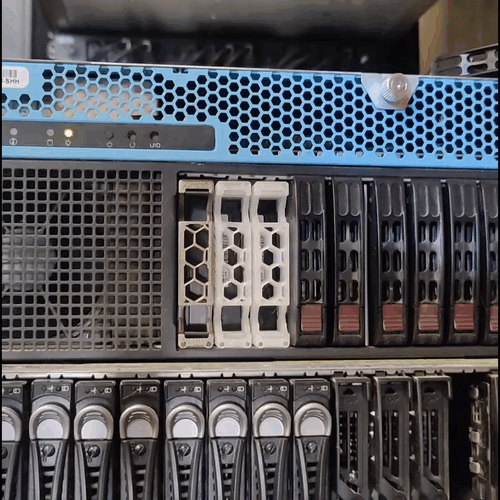

You could probably print the caddy face in different colors to designate specific HDD's or different HDD pools.

Depending on how hot your HDD's are, you may want to use a different filament other than PLA because of PLA's low deformation temperature

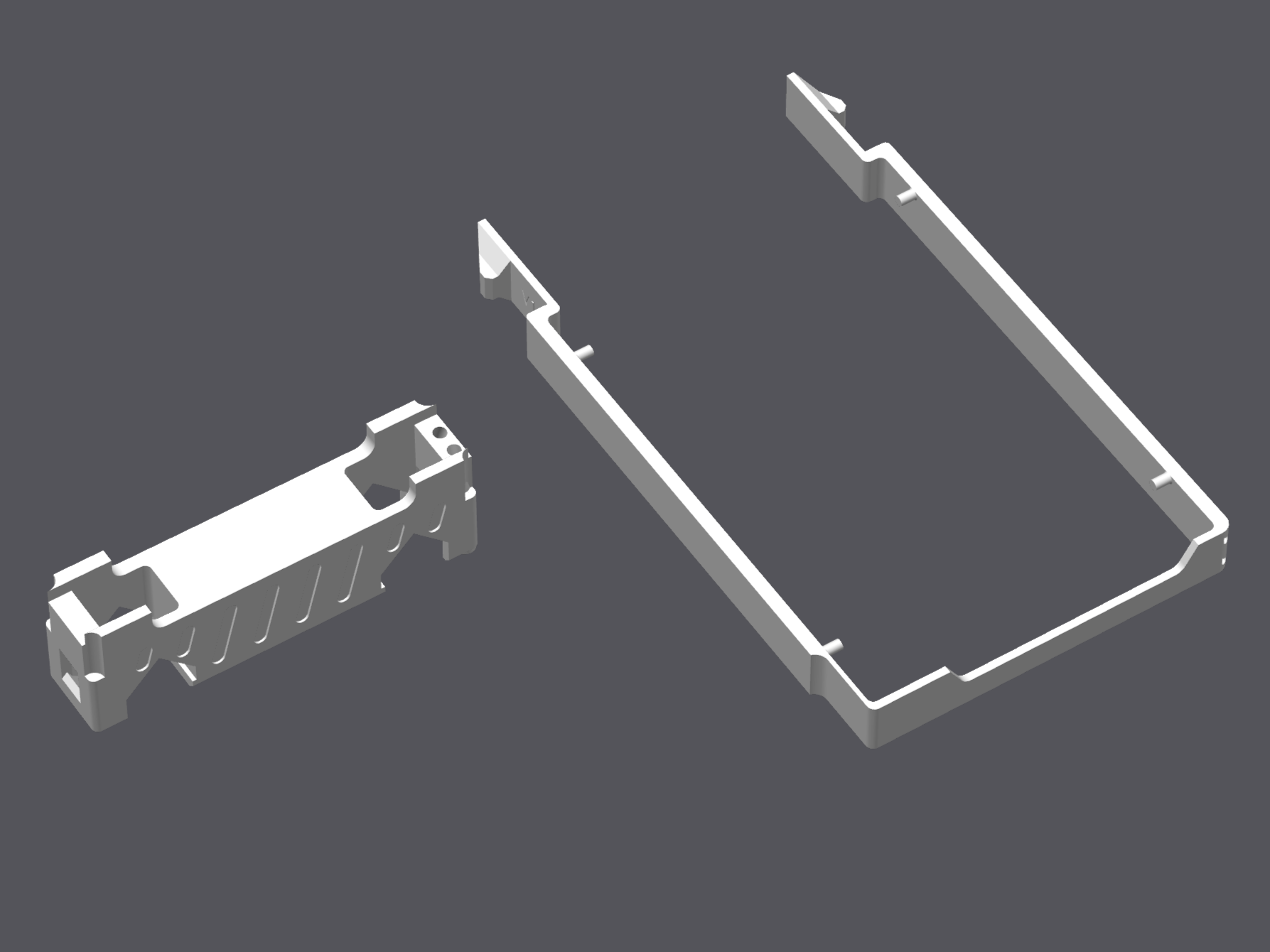

To split the model into each individual object:

(In slicer) Right-click model → split → to object

PRINT SETTINGS I'VE USED

Nozzle: 0.4mm

Layer Height: 0.2mm

(Feel free to experiment and change what you like) Any setting not listed below are assumed to be default

2.5" Caddy Face

Walls2

Top SurfaceConcentric

Top Shell Layers0required for visible infill pattern

Bottom SurfaceConcentric

Bottom Shell Layers0required for visible infill pattern

Sparse Infill Density10%change to desired infill pattern

Sparse Infill PatternHoneycombchange to desired infill pattern

Infill Direction60 degreeschange to desired infill pattern

Enable SupportsYespossibly needed for grill snap-fit

TypeNormal Auto

StyleSnug

2.5" Sled

Walls3

Enable SupportsYespossibly needed for tool-less studs & grill snap-fit

TypeNormal Auto

StyleSnug

Threshold Angle10 Degreesto prevent generated supports in fiber-optic holes

Brim TypeOuter Brim Onlyfor bed adhesion

Current Version: v1

**It's possible that different versions of Supermicro chassis may be incompatible with this model. Result may vary**

Looking for a caddy for your 3.5" HDD?

Design and description by Dopins , licensed CC-BY-SA.
