Tray for the Radiomaster DBR4 Receiver (Rekon 10 Pro)
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~10 g
- Express shipping
- $20
More information
This custom 3D-printed tray is designed to house the Radiomaster DBR4 receiver in the dead center of the Rekon 10 Pro frame, positioned just below the 30x30 flight stack. The tray fits securely in the battery strap section, maintaining clearance for a bottom battery strap while allowing centralized placement for the DBR4 and proper routing of its four antennas throughout the frame. This setup optimizes space and performance for your FPV build.
Check out my YouTube video showcasing a build using this part: https://youtu.be/CxsEEGlc1K0
Key Features:
• Centralized Receiver Placement: Ensures balanced antenna routing and cleaner frame layout. • Optimized Space Usage: Leaves room for a bottom battery strap and other components. • Secure and Sturdy Installation: Keeps the DBR4 securely mounted for worry-free flying.
Printing Specifications:
• Material: TPU • Infill: 100% • Supports: Required
Installation Steps:
• Print the Tray: • Use TPU material with 100% infill to ensure flexibility and durability. • Enable supports for proper printing of overhangs.

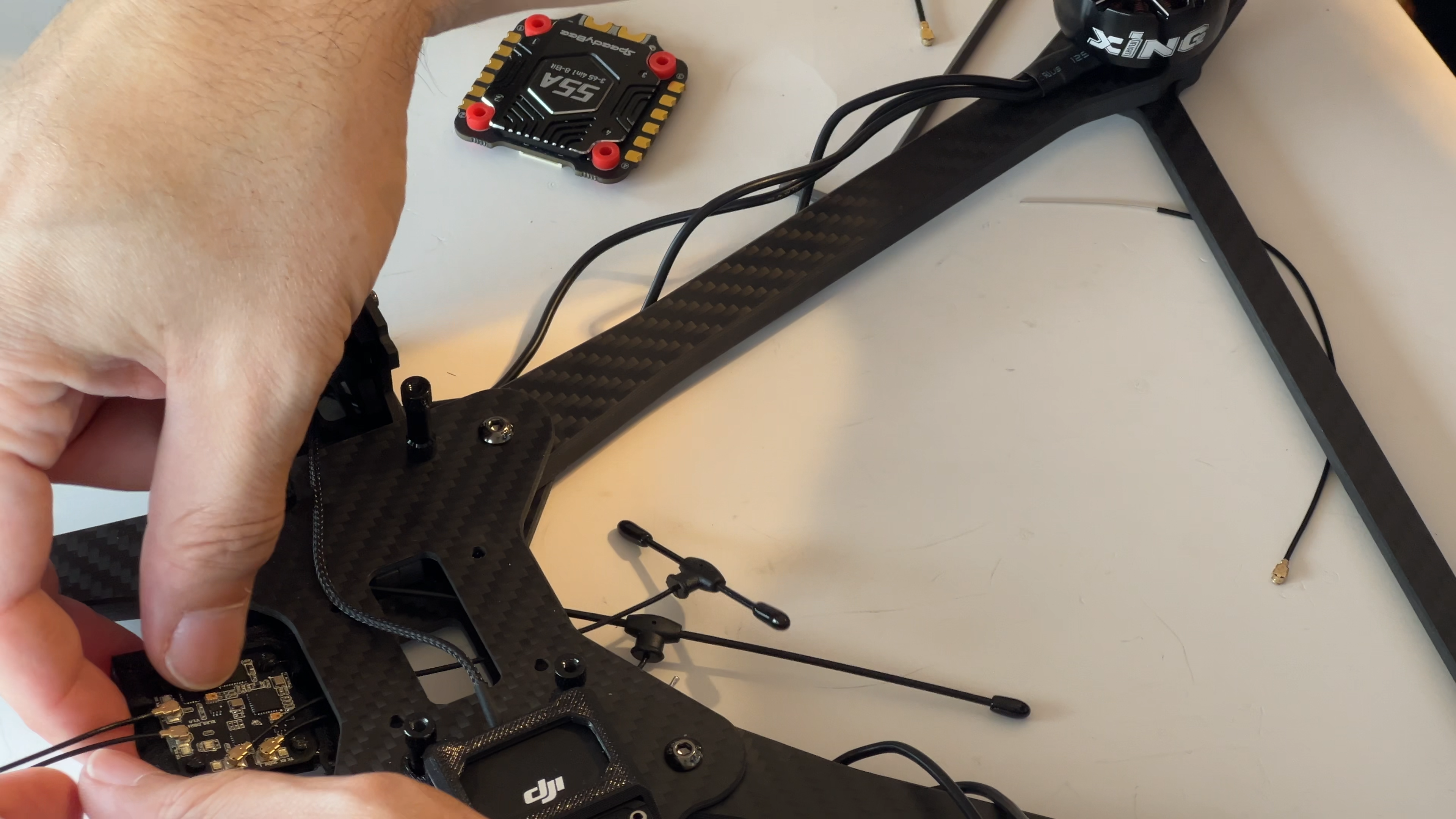

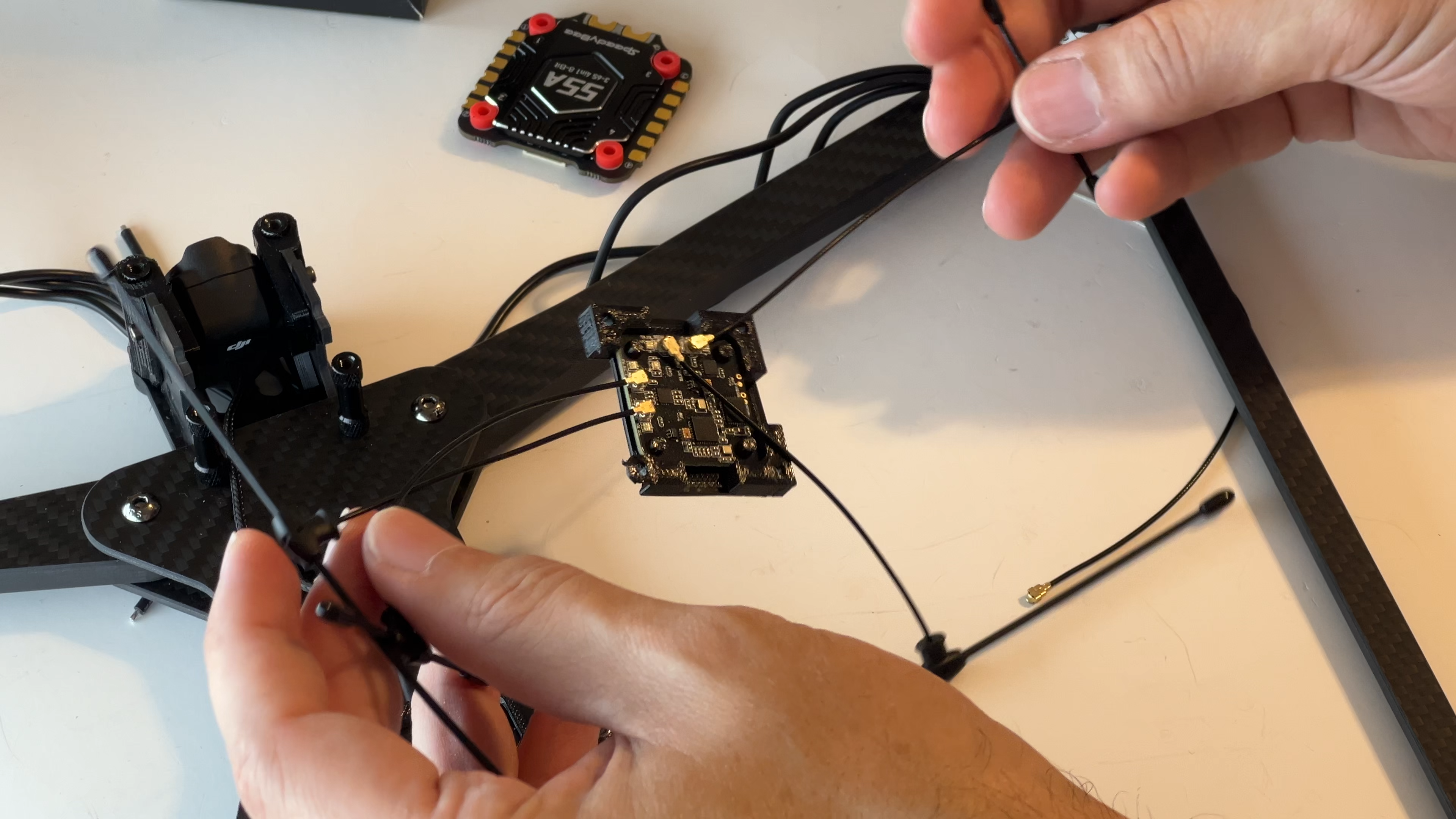

• Prepare the Receiver: • Snap the DBR4 receiver into the printed tray along with its antennas. Ensure the fit is secure and stable.

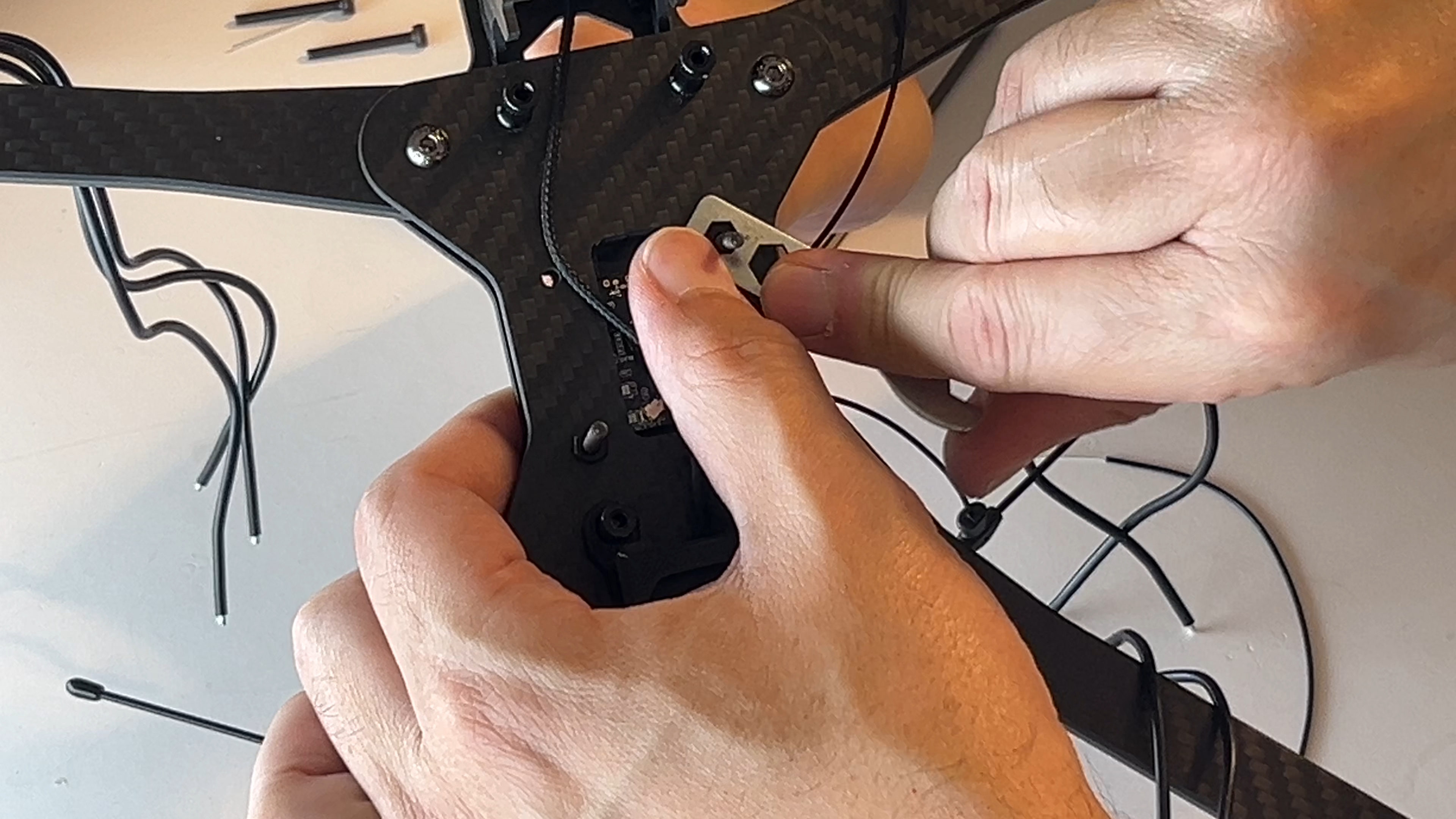

• Install the Tray into the Frame: • Position the tray in the central section of the frame, directly below the 30x30 flight stack. • Use the standard stack screws from your build kit. Insert the screws through the bottom of the frame, threading them through the tray and the DBR4 receiver. • Secure the screws on the top side with nuts to ensure a tight and stable fit.
• Position the Antennas: • Route the four DBR4 antennas throughout the frame for optimal placement. This centralized position ensures each antenna is evenly spaced for maximum performance.
Notes
• Ensure all screws and nuts are tightened securely to avoid any movement during flight. • Follow the provided illustrations for additional guidance on installation and routing.
Watch It in Action:
Check out my YouTube video showcasing a build using this part: https://youtu.be/CxsEEGlc1K0
Support:
Have questions or need assistance? Drop your comment on my youtube video, and I’ll be happy to help!
Design and description by Magic Aerials , licensed CC-BY.
Frequently asked
How long does shipping take?
Tray for the Radiomaster DBR4 Receiver (Rekon 10 Pro) is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
