Tube Clamp for Modular Mounting System
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~90 g
- Print time
- ~5 h
- Express shipping
- $20
More information

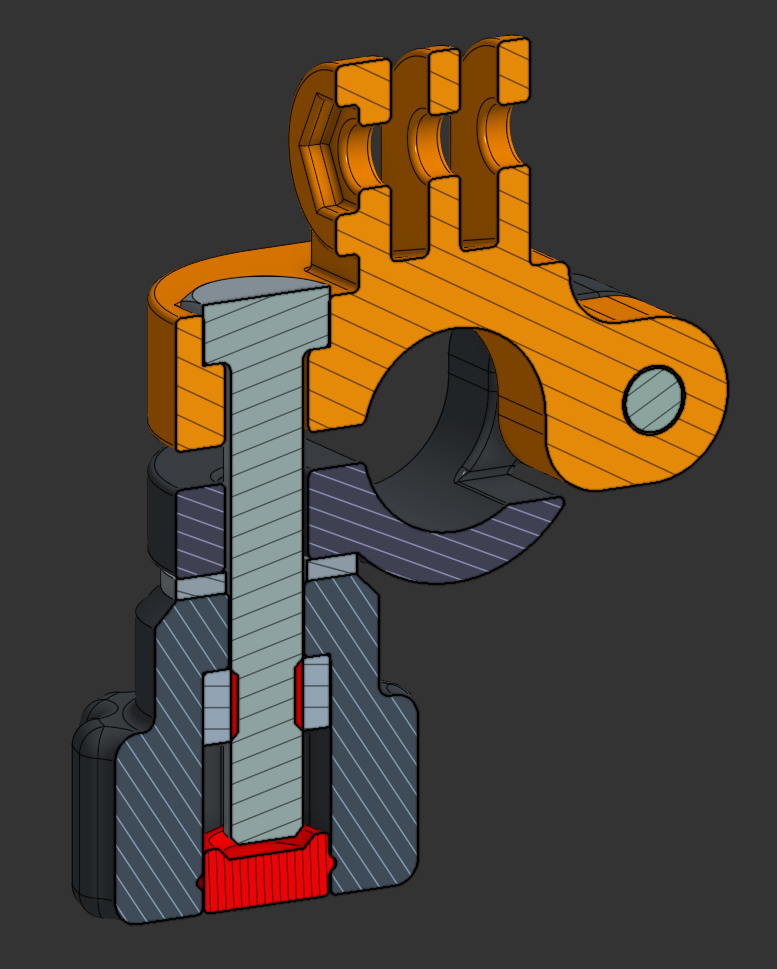

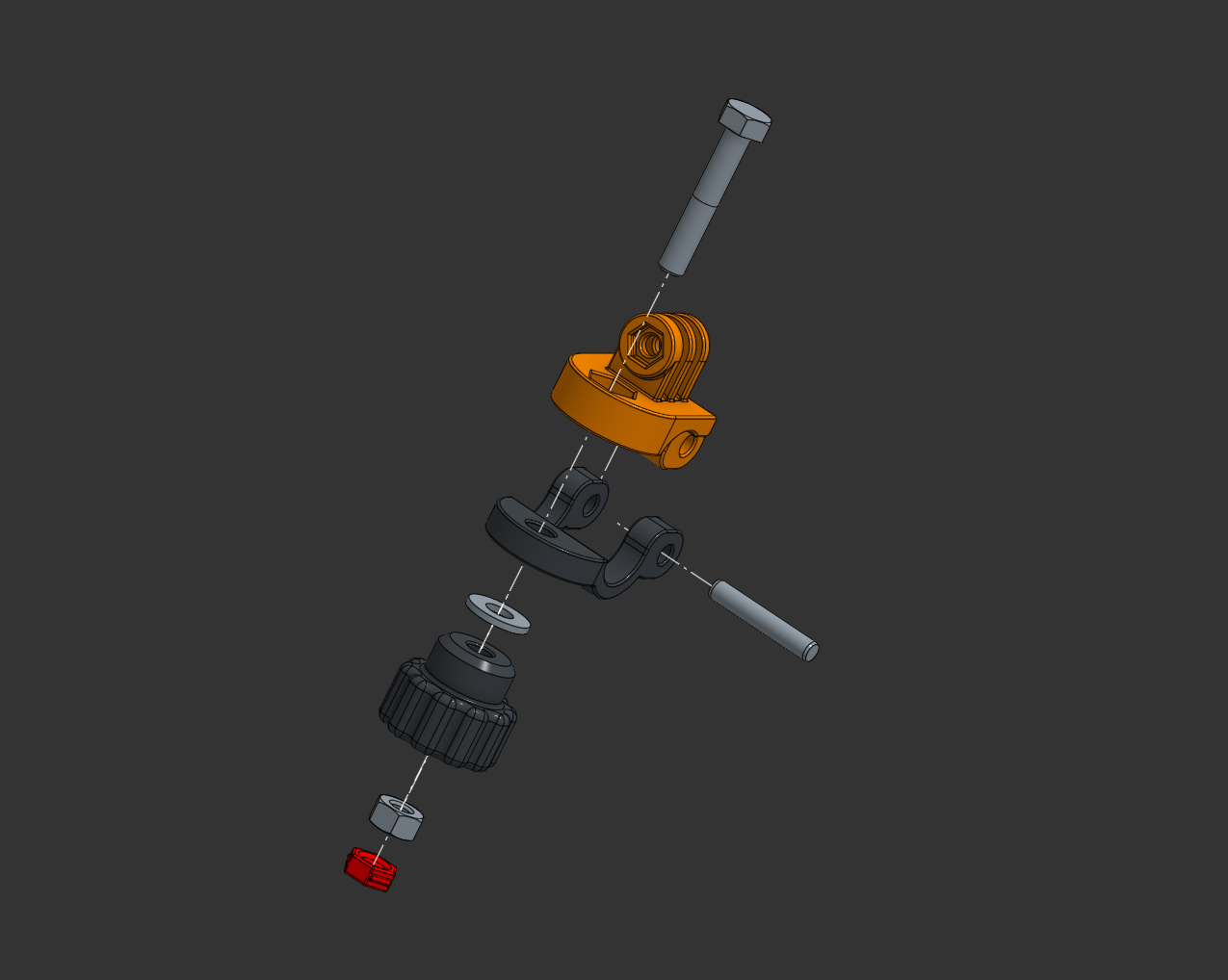

This clamp is designed to mount Modular Mounting System components to a 16mm tube. If you need other sizes, you can use the linked OnShape document as a starting point to create them.
The hinge pin is designed for M5 x 30mm steel pins which are easy to find on Amazon, or you can use an M5-0.80 x 40mm bolt and nylon locking nut.
The clamping hardware used is a 1.5in 1/4 x 20 bolt with nut and washer.
I've also included a compatible knob for convenience.
GoPro compatible
Configurable OnShape model: Tube Clamp - Fixed-Bolt
Check out my Configurable Bolt Knob to create knobs for this and other projects!
Design and description by YourRobotOverlord , licensed CC-BY.
Frequently asked
How long does shipping take?
Tube Clamp for Modular Mounting System is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
