Under Desk Cable Tidy

Introduction

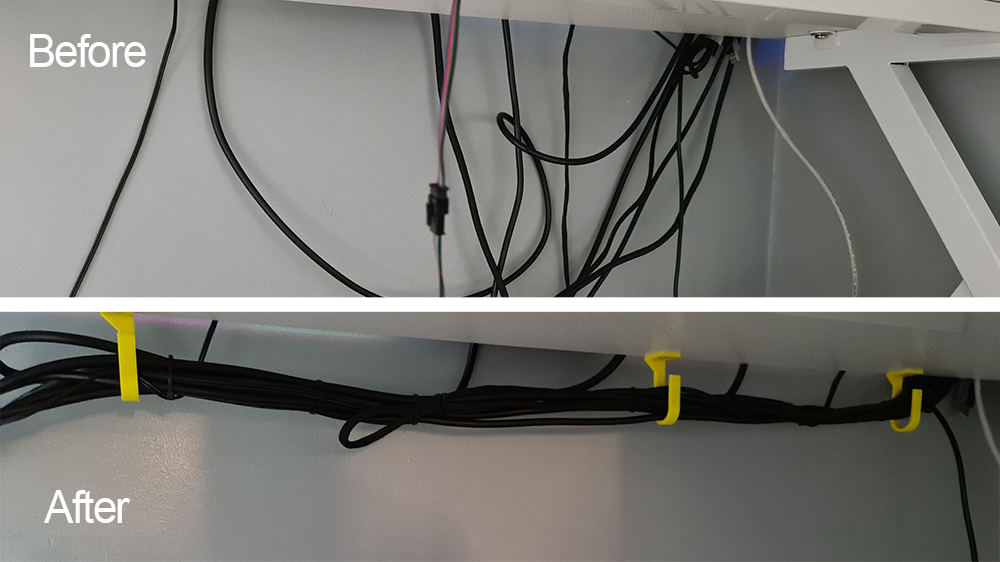

A simple bracket which can be mounted to the underside of a shelf or desk to keep cables tidy. Cables of all sizes can be added and removed easily to manage your cables under your desk.

Printing

Printing should be easy enough, print the guide flat with the ledge facing up. You don't need supports for this model. I suggest printing it with 5 or 6 walls to ensure the bracket prints solid. Mine were printed in PLA which is plenty strong enough for this purpose.

Mounting

The mounting guide can be used to mark the position for a pilot hole. Position the bracket under the desk as shown in the picture below.

Then use a pencil to mark the hole in the mounting guild. Once done, you can drill a small pilot hole and this is where you can screw the bracket into place.

Be sure to use a screw which will not go all the way through the desk or shelf you are mounting to.

Design and description by Whisky Lima , licensed CC-BY.
