Universal Frame Mount for MK3s
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~15 g
- Express shipping
- $20
More information

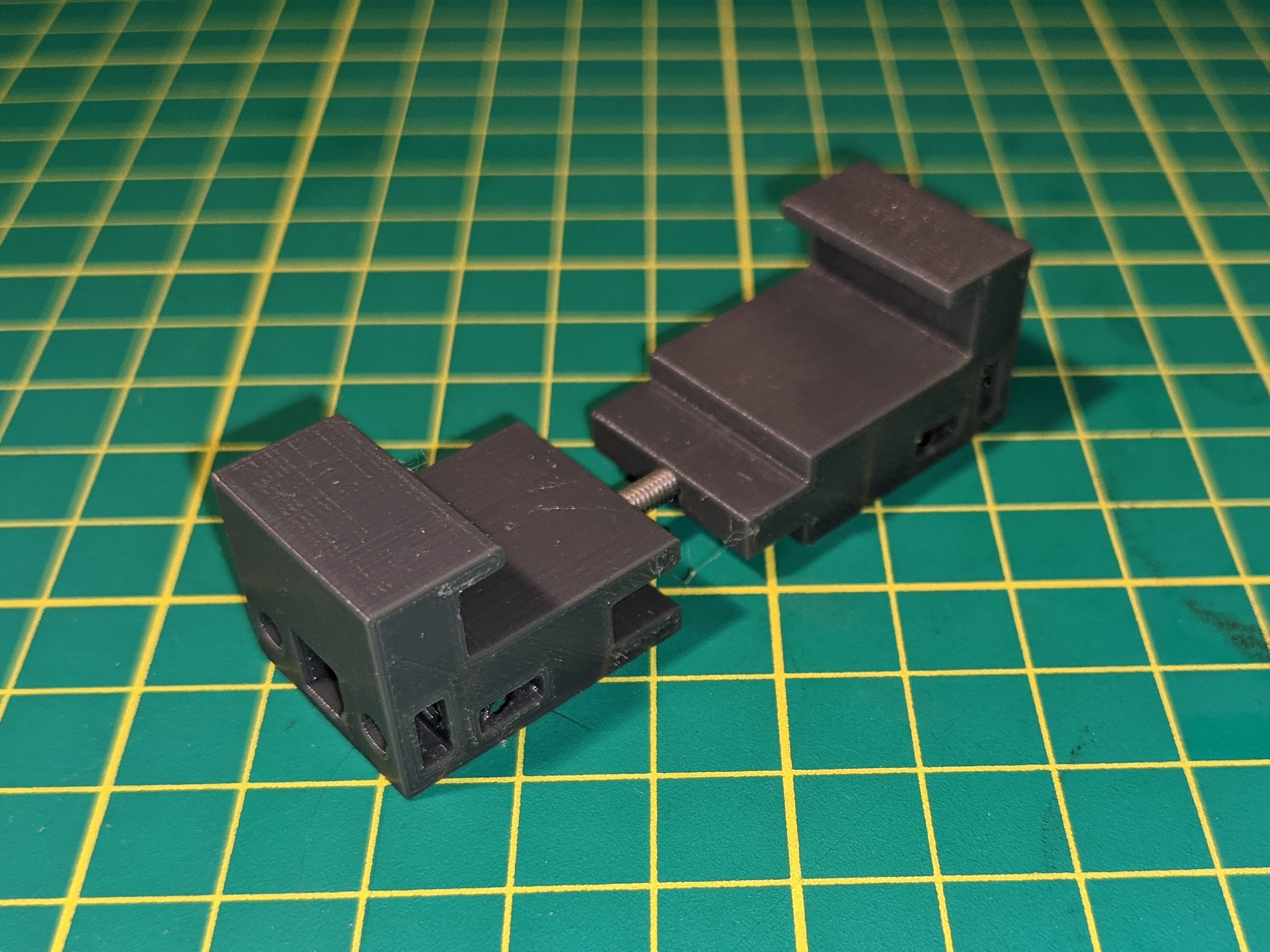

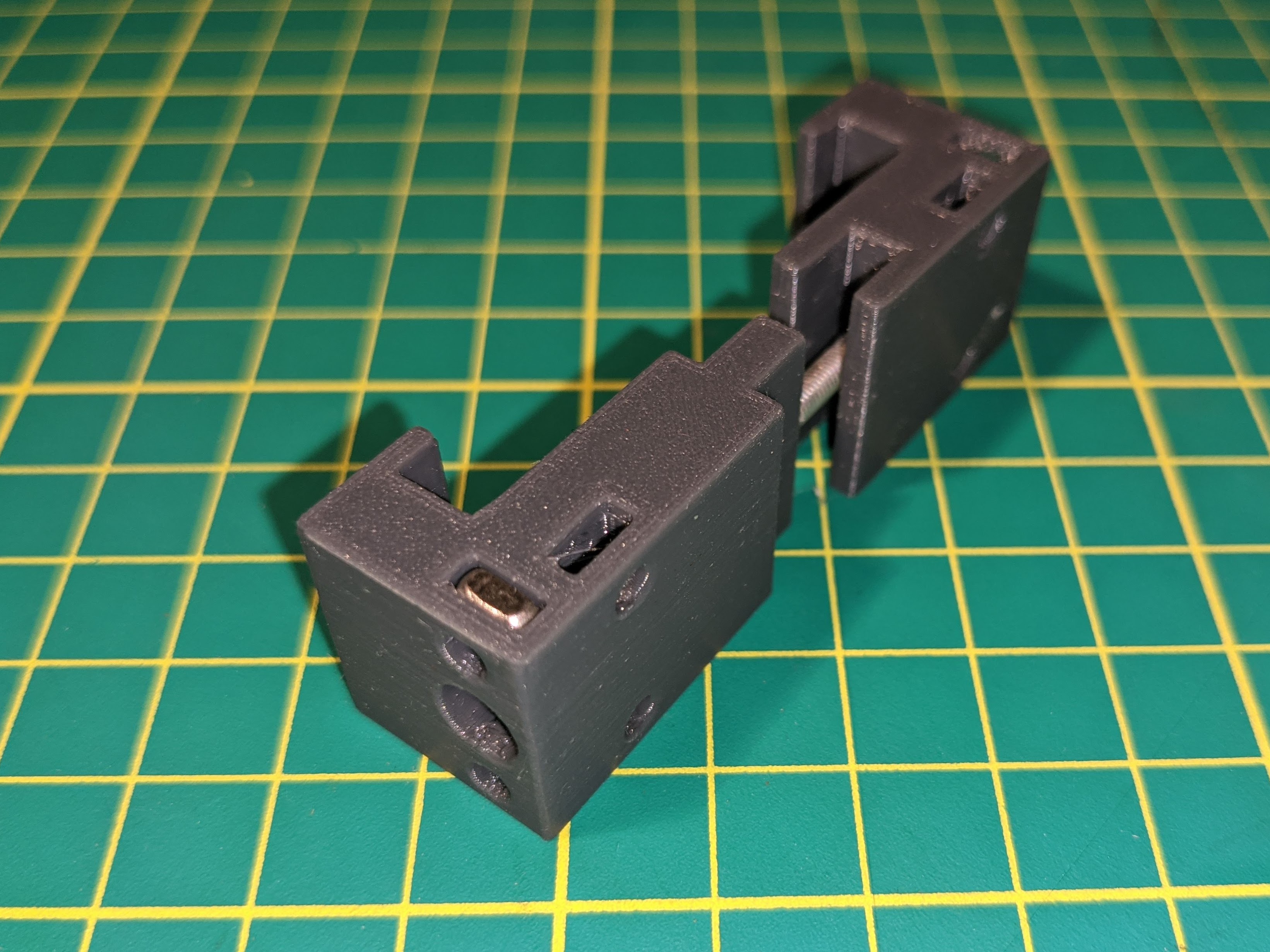

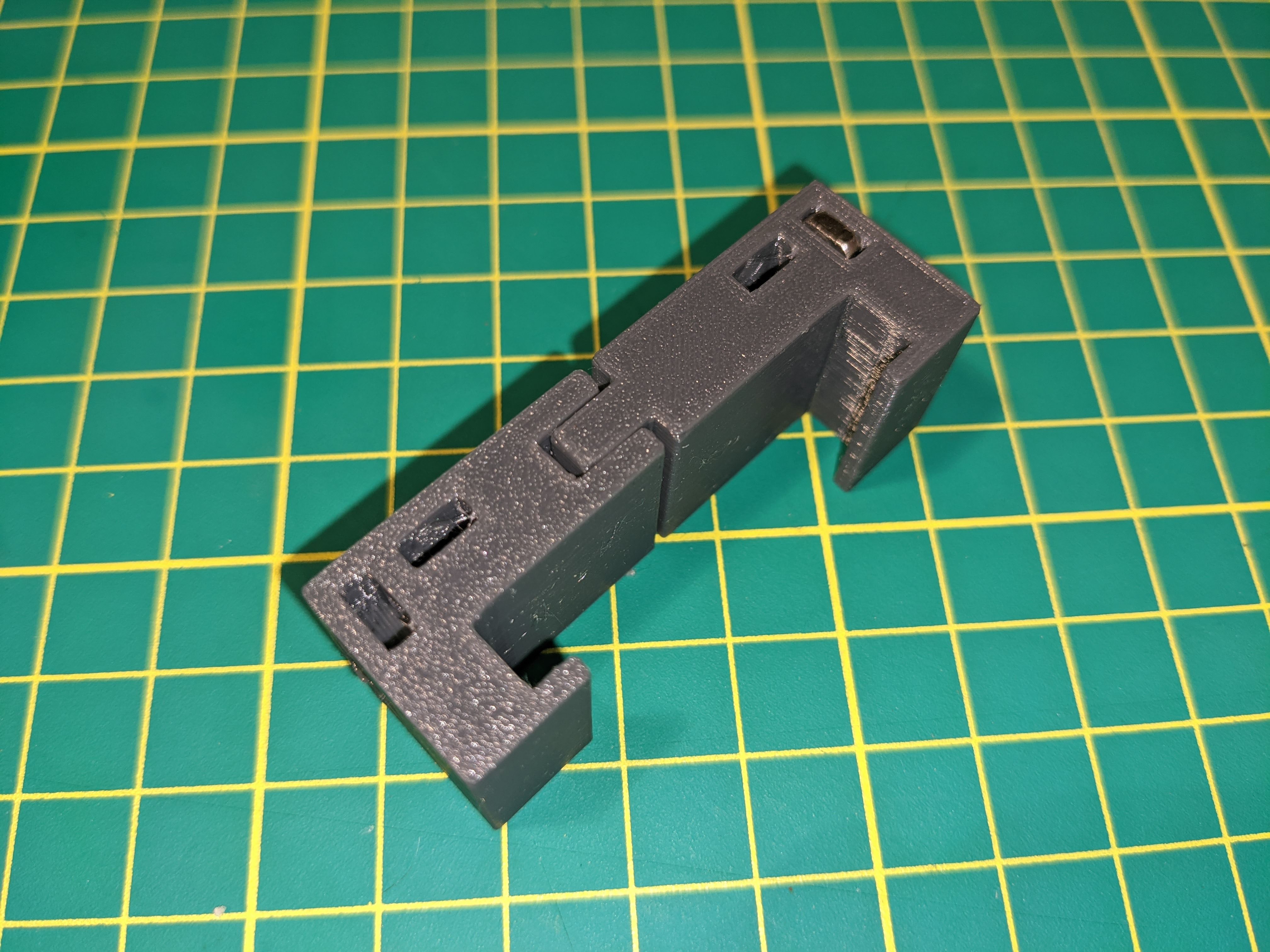

This is a clamp-style mount designed to attach anything to the Prusa MK3s frame, top or sides. It tightens with a screw and can be positioned anywhere. It provides two mounting holes on the top, two on the bottom, and four on the back, with slots to insert square M3 nuts for each hole. The distance between all mounting holes is 14 mm on center.
The mount does not interfere with the moving parts of the printer. Here is an example of an attachment for the mount:
https://www.prusaprinters.org/prints/40947-angled-double-p4-m10-adapter-for-mk3s-frame-for-re
The mount prints with no supports. You will need a square M3 nut, and a 40 mm M3 screw for the short version (for clamping to the top of the frame), or a 50 mm M3 screw for the long version (for clamping to the sides of the frame).
Print instructions
I printed this in PETG with 0.15mm layer height, but 0.2mm should be fine, too. No supports required. The screw hole for the long screw needed a little clean up (just run the screw through it 2-3 times.
Design and description by Antipode , licensed CC-BY.
Frequently asked
How long does shipping take?
Universal Frame Mount for MK3s is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
