V-core 3 Logitech C270 Mount

A re-worked Logitech C270 webcam mount for designed with the RatRig V-core 3 (VC3) printer in mind, but should fit any similar printer that uses 3030 extrusion.

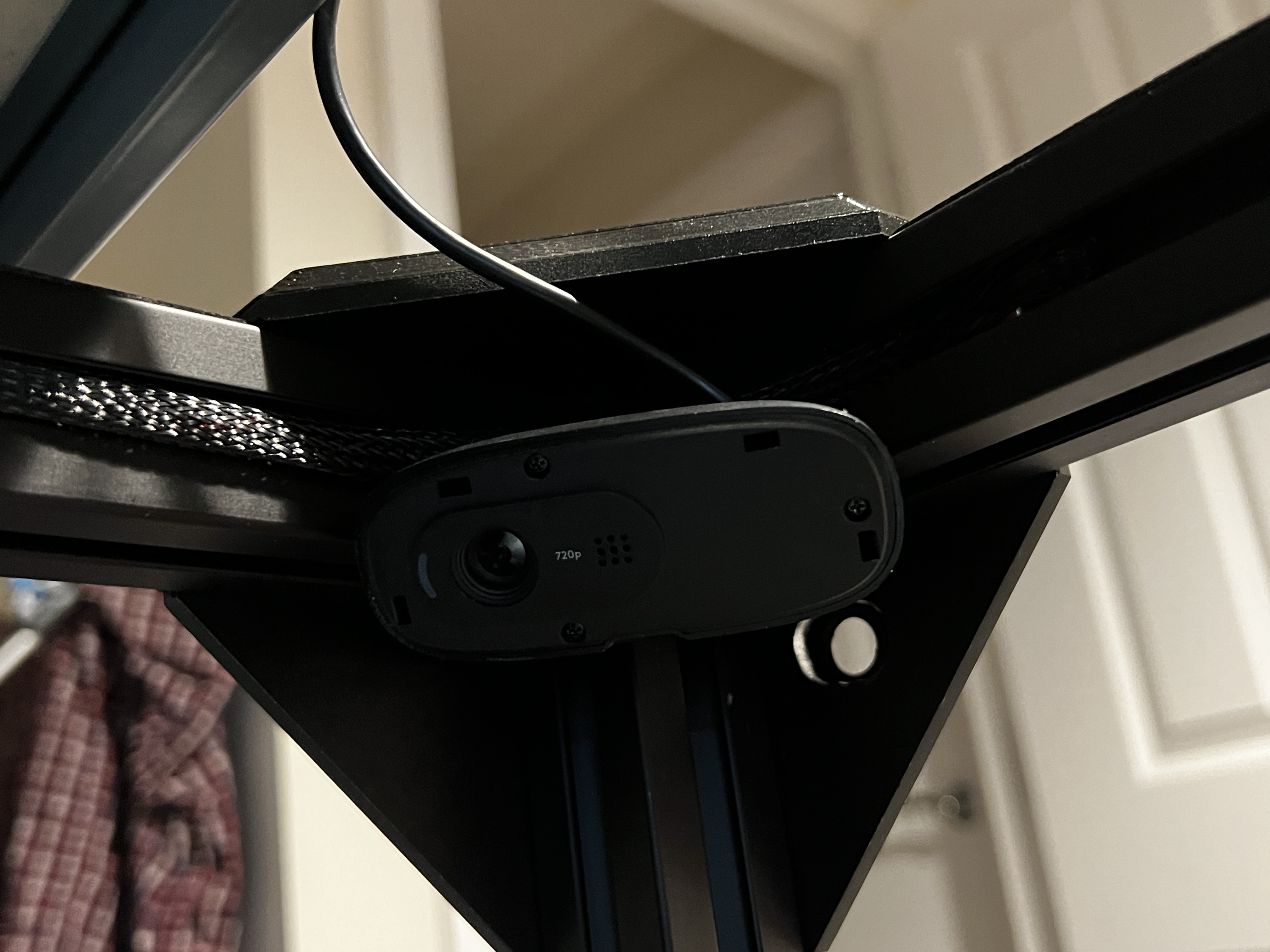

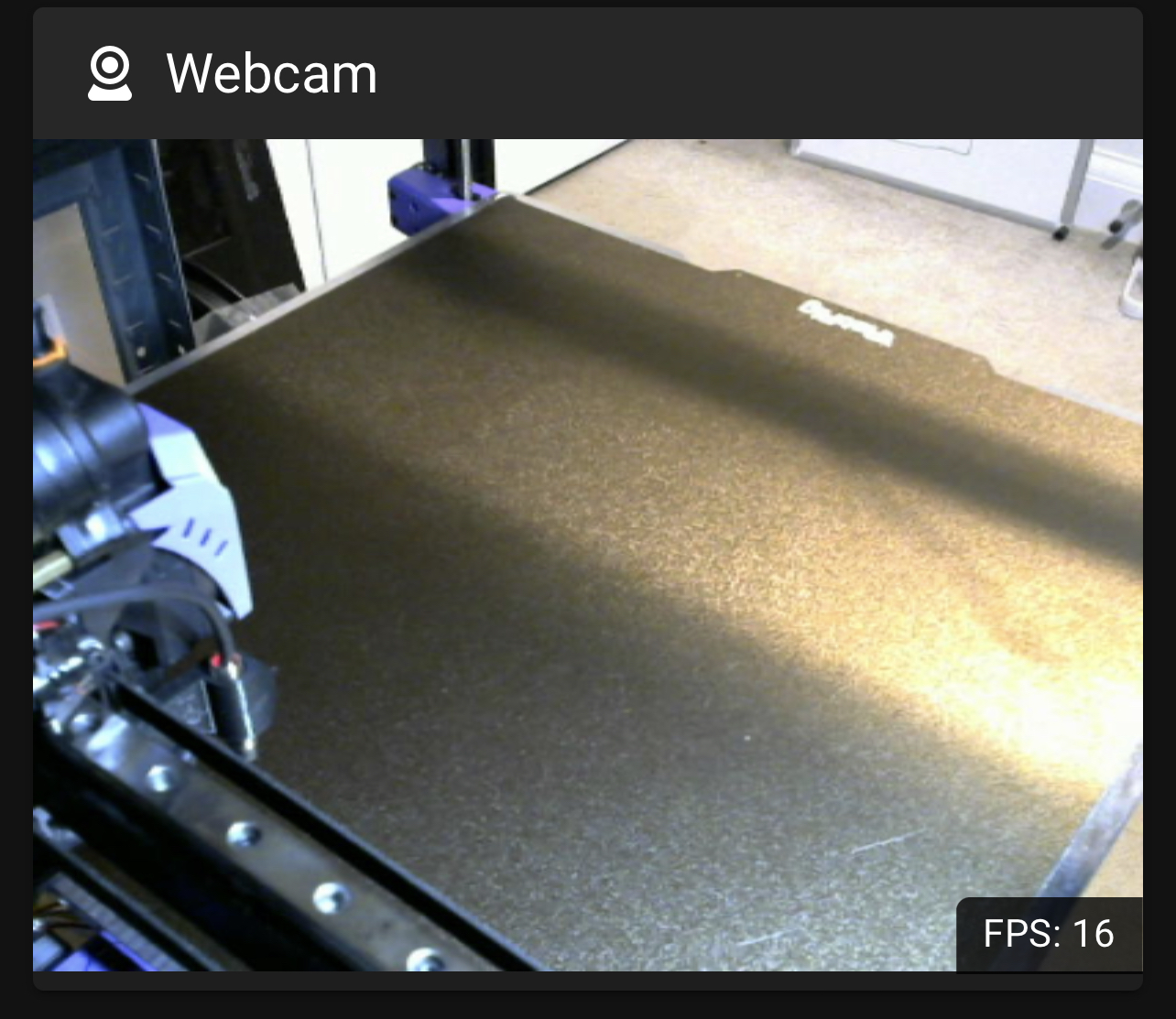

This version is mounted inversely compared to the original, because I wanted to try and hide as much of the camera as possible between the corner plates of the VC3 printer. The arbor is lengthened by 3mm to allow for tilt adjustment. There is very little pan adjustment, but this is not really required given the mounting locations this is intended to be used in. The addition of a small boss aids location of the arbor during mounting/remounting. The bracket has been thickened to accommodate M6 bolts, as these are commonly used with 3030 and are likely to be to hand for most.

Hardware required:

2 off M6 x 10-12mm fastener to mount the bracket to the extrusion.

1 off M3 x 8mm fastener to attach the camera arbor to the bracket.

1 off M3 heat insert OD4.2mm, L4-5.2mm (to be inserted to arbor).

-----

1 off M3 x 25mm to attach the camera to the arbor.

1 off M3 Nyloc.

OR

1 off M3 x 20mm to attach the camera to the arbor, self threading into plastic.

-----

Design and description by tomlawesome , licensed CC-BY-SA.
