Vertical door storage box system

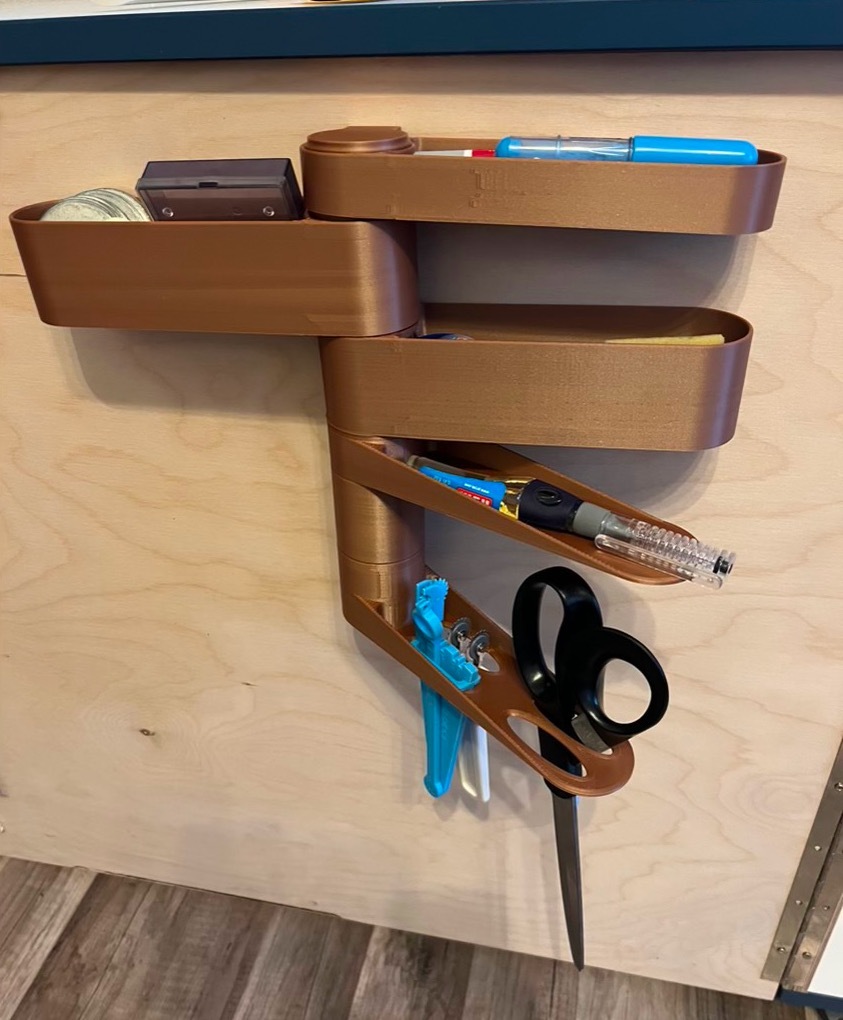

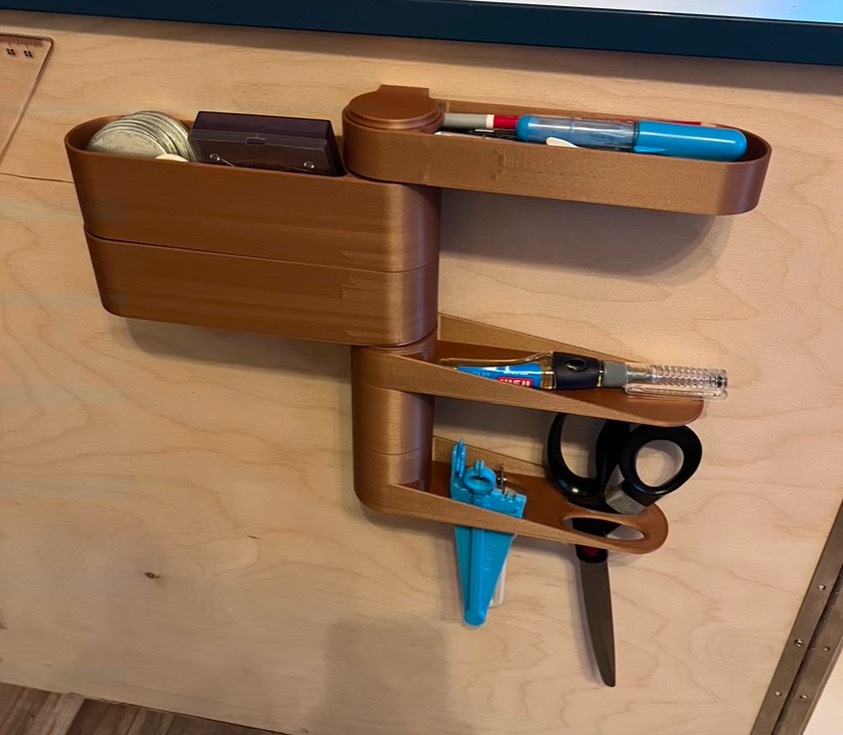

This is a storage box system, that can be mounted vertically on a flat surface, i. e. a door inside a cupboard or something like that.

See the CAD screenshot for all parts.

Regarding the german file names: "Schale"=shell, "Einsatz"=insert

At the very least, you need

• Kappe unten • Kappe oben • one of: Schale voll, Schale halb, Schale zweidrittel

Optional:

If you only want to use the "Schale.." parts in combination with "Einsatz" parts, you can use the "Schale voll/halb nur Einsatz" parts and save some filament and print time. (Thanks to pumikachu for the hint :-))

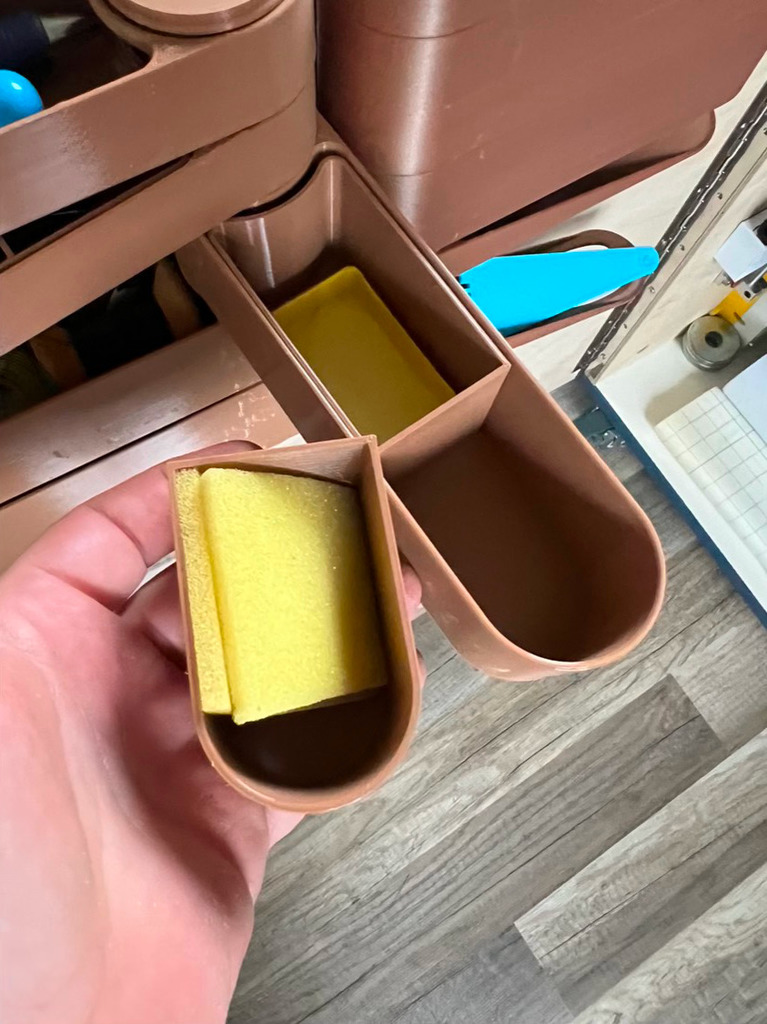

The "Einsatz..." parts are removable boxes which fit nicely into the "Schale..." parts.

Hints regarding assembly

If you print more than one of the "Schale..." parts, you need a "Steckverbinder" part additionally.

If you print many "Schale..." parts to be connected, consider printing additional "Haltering" parts. This will help stabilizing the whole stacked tower when mounting on a surface.

Print Settings

Printer Brand:

Anycubic

Printer:

Kossel

Rafts:

No

Supports:

Yes

Resolution:

0.3

Infill:

15

Filament: eSUN PLA+ brown/copper

Notes

The parts have not been rotated, you need to place them manually in your slicer.

Regarding support:

You only need support for the "Kappe unten.stl" part.

Design and description by pandel , licensed CC-BY.
