WAGO 221 Mount - 11 Variations

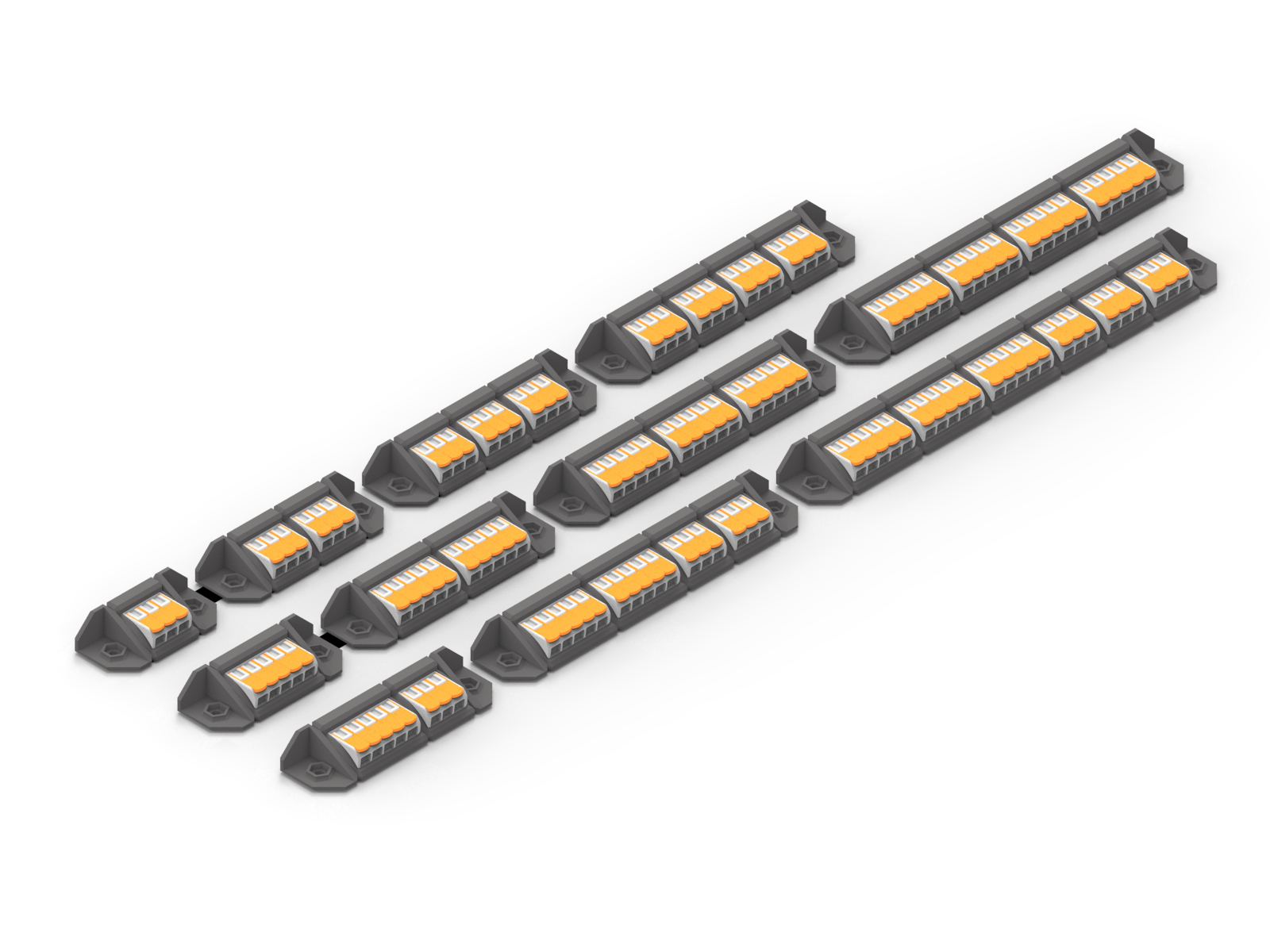

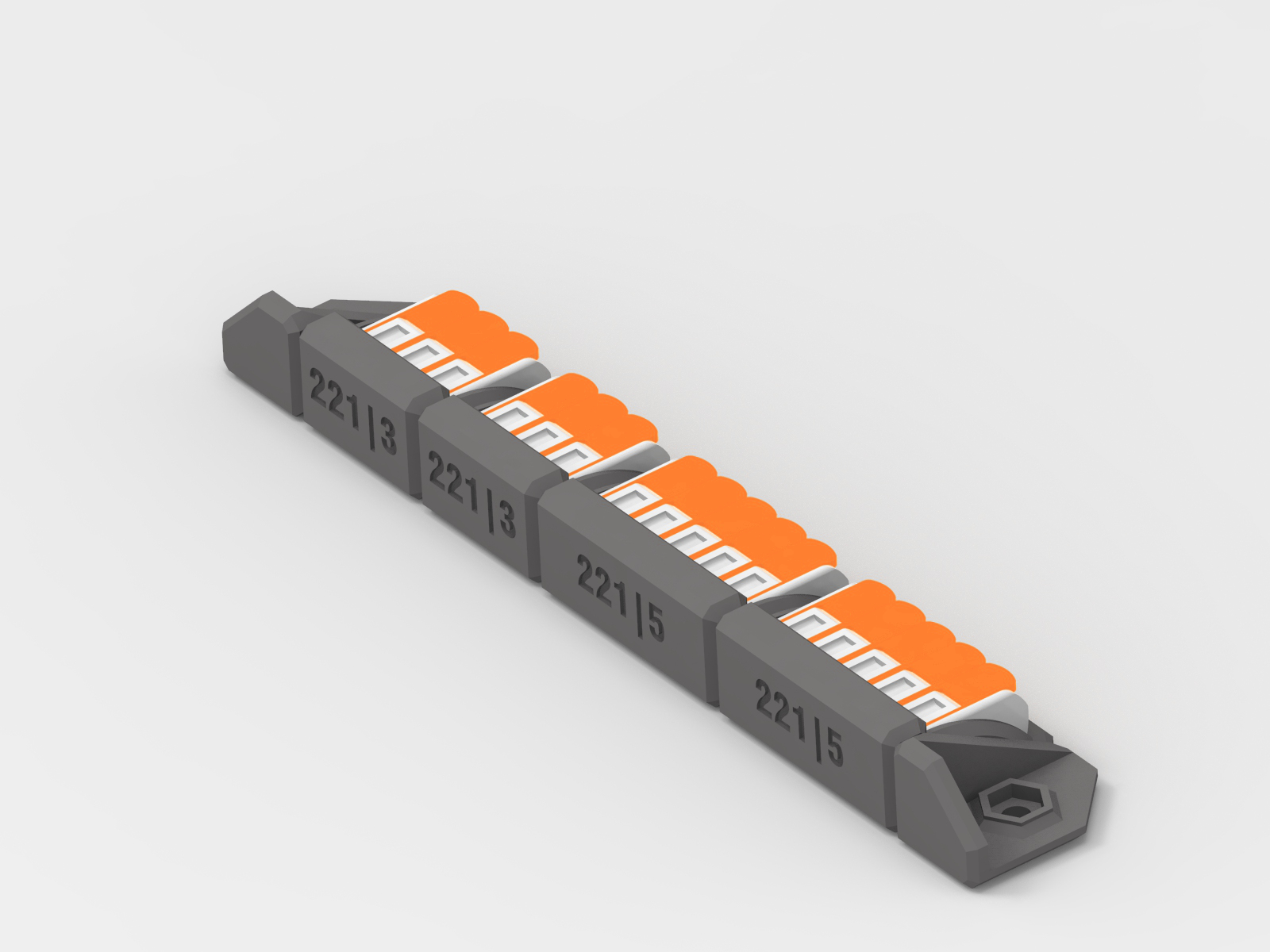

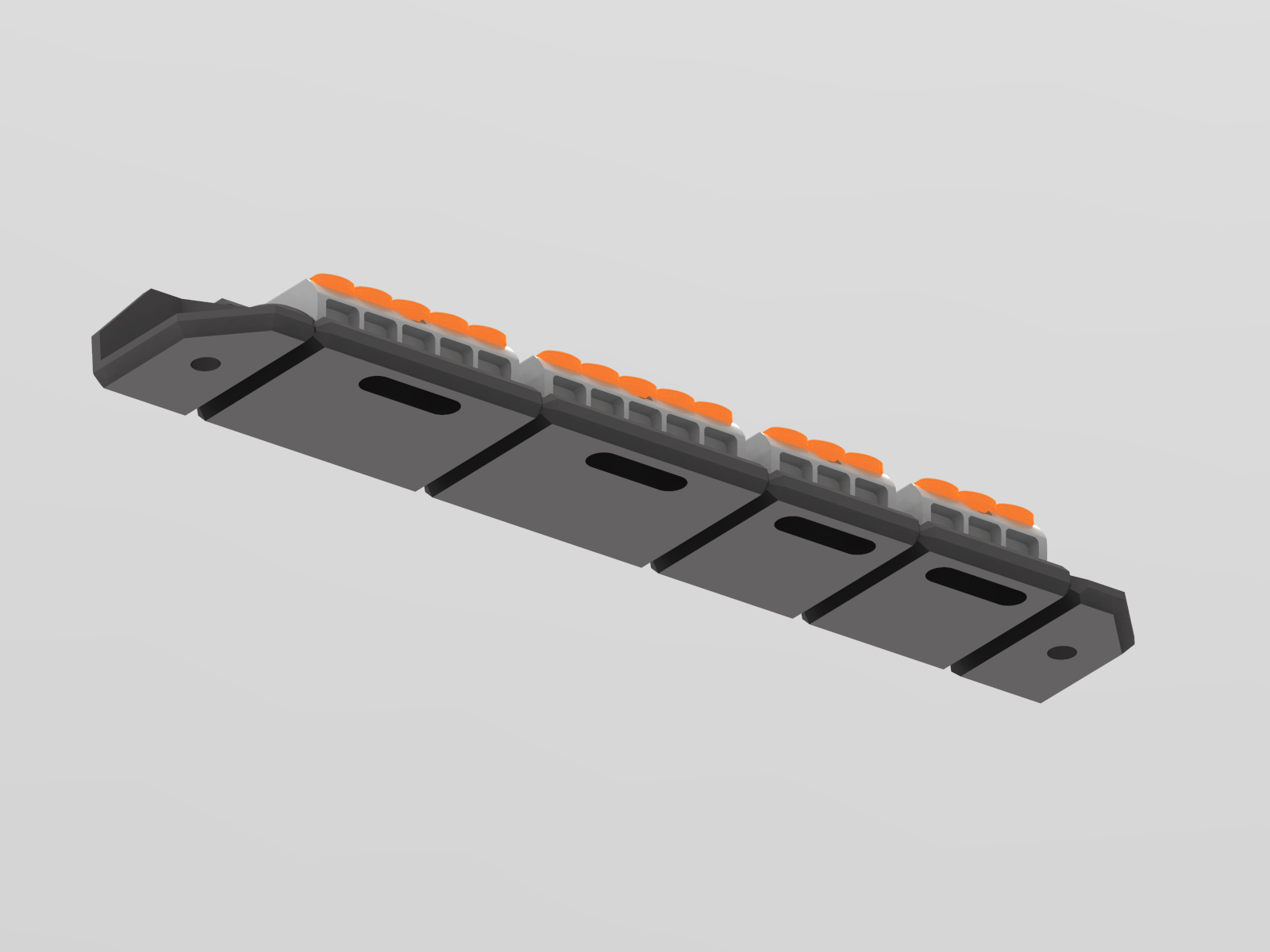

Description: These snug-fit mounts are designed for WAGO 221 connectors, offering 11 different variations to accommodate 3 and 5 connection WAGOs. The mounts are functional when the WAGOs are in place. To release them from the mount, use a screwdriver to poke through the hole on the bottom. The mounts have a height of 14.25 mm and a width of 24.5 mm. Secure them using 2 M3 nuts and bolts. Print orientation is the side with the numbers, with an infill of 40%.

Features

• Variations: 11 different variations for 3 and 5 connection WAGO 221 connectors. • Dimensions: Height: 14.25 mm, Width: 24.5 mm. • Secure Fastening: Uses 2 M3 nuts and bolts. • Snug Fit: Ensures WAGOs are functional when in place. • Easy Release: Use a screwdriver to poke through the hole on the bottom. • Bolt Location Dimensions: • WAGO_221_5X_3X_1: 71 mm • WAGO_221_5X_3X_2: 127 mm • WAGO_221_5X_3X_3: 183 mm • WAGO_221_5X_1: 48.5 mm • WAGO_221_5X_2: 82 mm • WAGO_221_5X_3: 115.5 mm • WAGO_221_5X_4: 149 mm • WAGO_221_3X_1: 37.5 mm • WAGO_221_3X_2: 60 mm • WAGO_221_3X_3: 82.5 mm • WAGO_221_3X_4: 105 mm

• Printing Recommendations: • Orientation: Print on the side with the numbers. • Infill: 40% for optimal strength.

If you would like the step files you can always contact me :)

Design and description by VC Design , licensed CC-BY.
