Well cooled double rack mount for Raspberry Pis

Dear fellow maker,

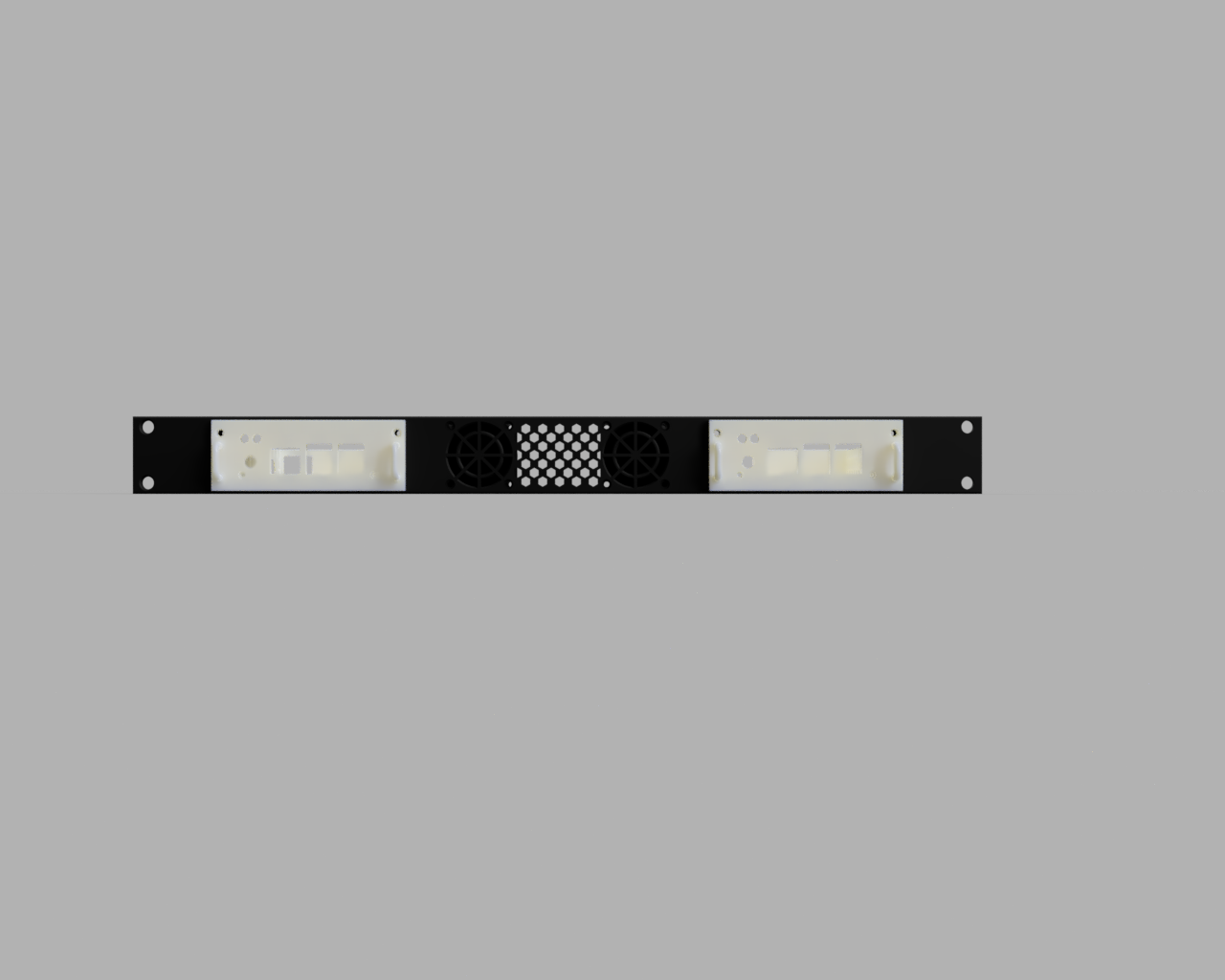

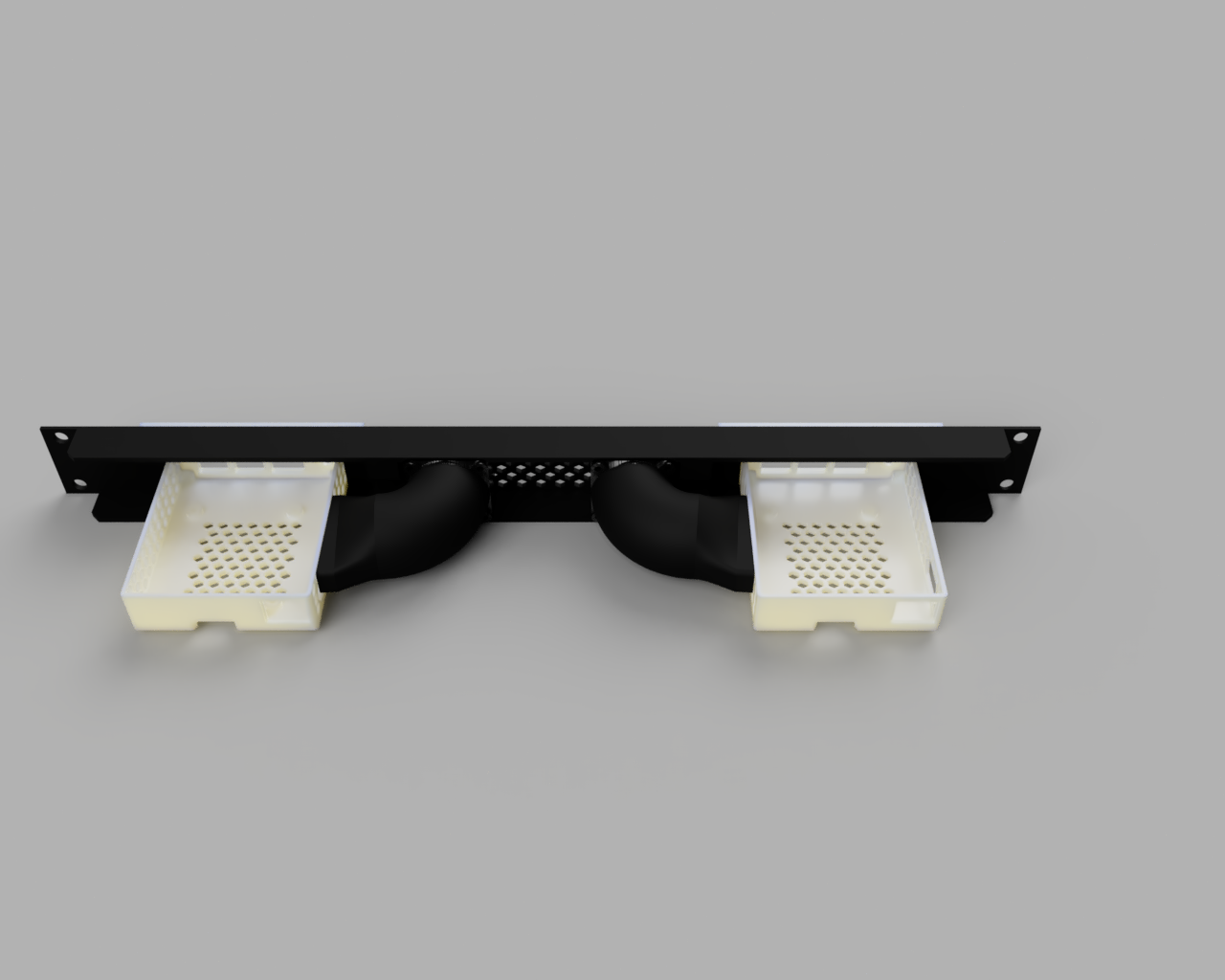

Thanks for checking out my (first) post! As you already saw - This is a mount for the standard 19 inch server racks. It houses 2 Pis and is enables you to overclock these with no fear about overheating from not enough air movement.

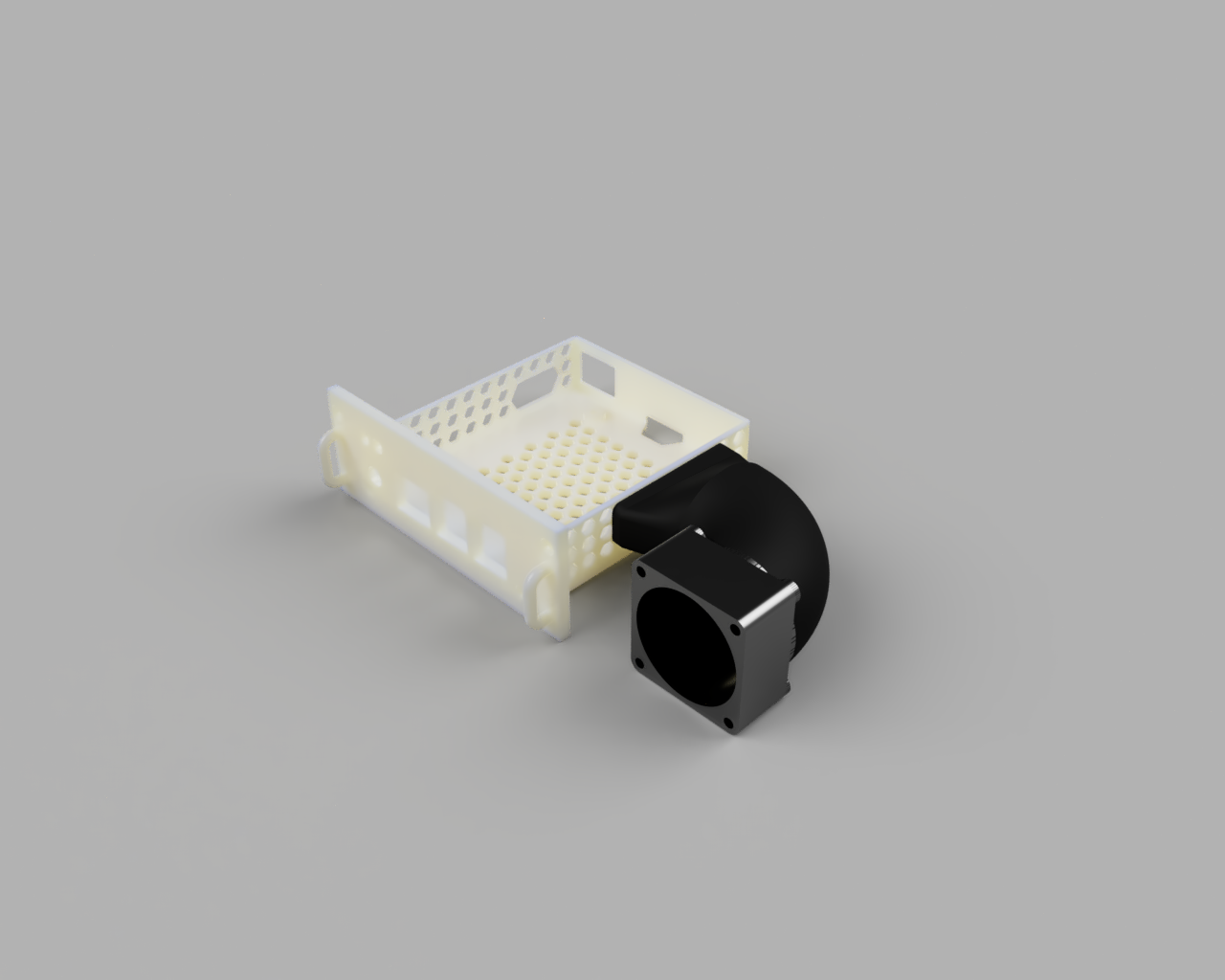

Generally, this should not be a very complex print. All parts are printable on a MINI(+). The only part that might require some support is the fan blower mount.

Additionally required:

• M2 screws and nuts for mounting the cage • M3 screws and nuts for putting together the front plate parts • LEDs for the Pis (Cutout size: 5.1mm) • A momentary switch / button for the reset capability of the Pis (Cutout size: 7mm) • 40mm 5v fans for blowing air onto the Pis (I use the Noctua ones, Cutout size: 40mm with 3.5mm roundings on the edges)

I hope you find this as useful as I do.

There is a Remix for a front plate for raspberrypi 4s - Go check that out! https://www.prusaprinters.org/prints/74703-frontplates

As the Time passed by I got more pi’s. So here is another try to make more pi’s fit in less space! https://www.prusaprinters.org/prints/75748-many-pi-rackmount

Happy making!

Design and description by NKnee , licensed CC-BY-SA.
