Whirlpool freezer door hook
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~10 g
- Express shipping
- $20
More information

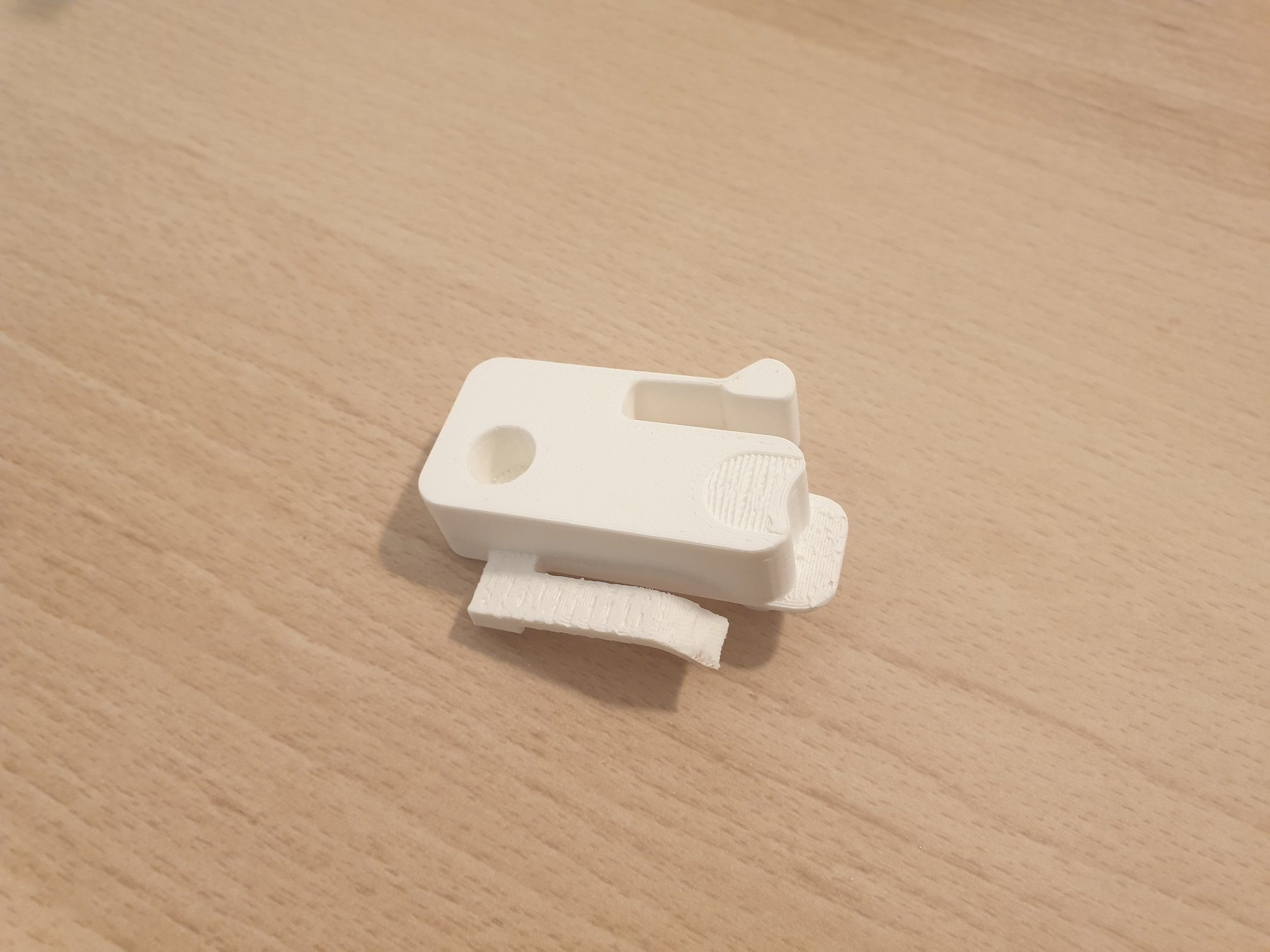

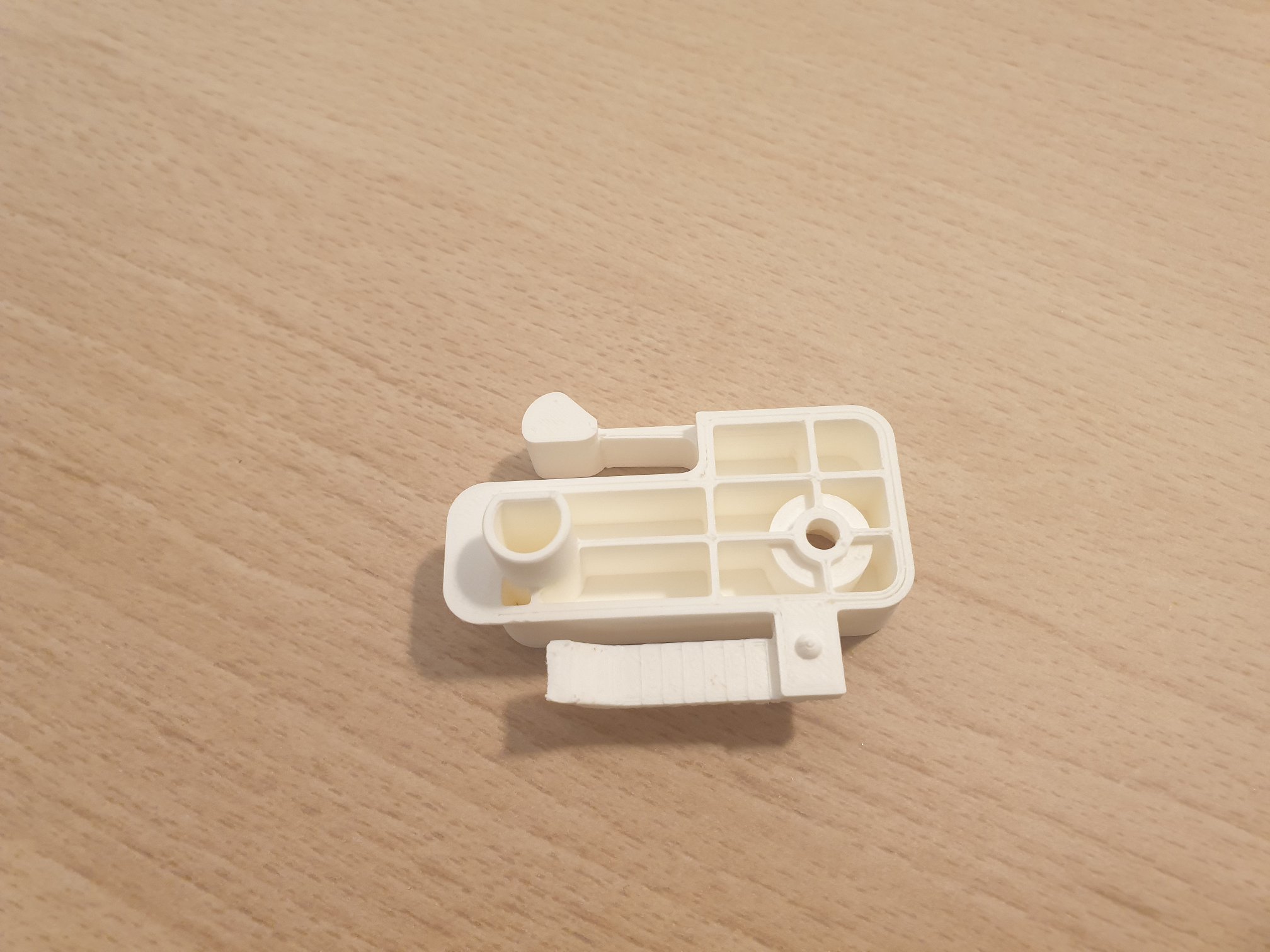

Original part has a “latch” on a long, thin (1mm thick) leg. Thin leg bends when pressed by the door and then latches when the door are completely closed. After some time this leg broke and I couldn't close shelf's door.
For that reason I decided to design the replacement, adjusting leg thickness in hope of prolonging element's life. At the base, where the bending happens, leg is 2mm thick, narrowing down to 1,5mm at the latching part. Also the rounding at the base of the leg is wider than in original part.

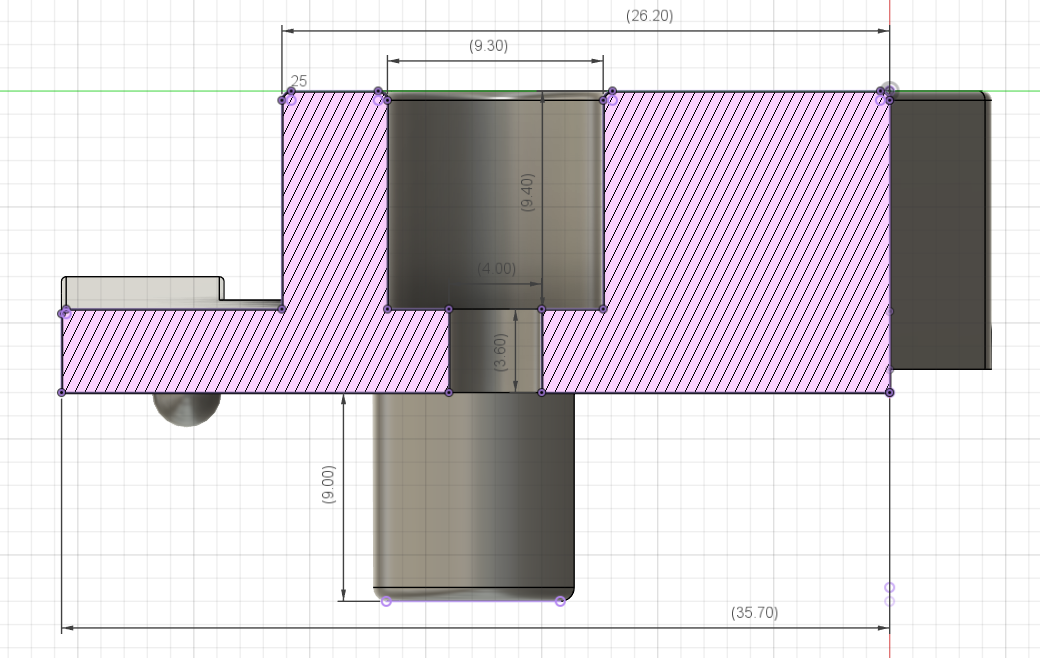

Walls of the original part are a bit less than 90* against the bottom and top, but the difference is so small that I have ignored it and extruded at 90*. The rest of the dimensions is transferred from original as best as I could.
Printing tips
I have printed both left and right parts with PrusaSlicer settings:
• ABS • 3 perimeters • 0,15mm quality layer • 25% infill • top to bottom orientation on the print bed • organic supports in the screw hole and under the hanging elements
Result is a bit ugly where the supports were, but can be easily polished with a file.
All suggestions and comments are always welcome.
Design and description by Marcin , licensed CC-BY.
