WWBMG Bigtreetech BTT EBB36 GEN2 A4T toolhead mount
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~20 g
- Print time
- ~1.1 h
- Express shipping
- $20
More information
UPDATE: Cable relief geometry fix in v5, cable is more centered now. Some other minor geometry fixes.

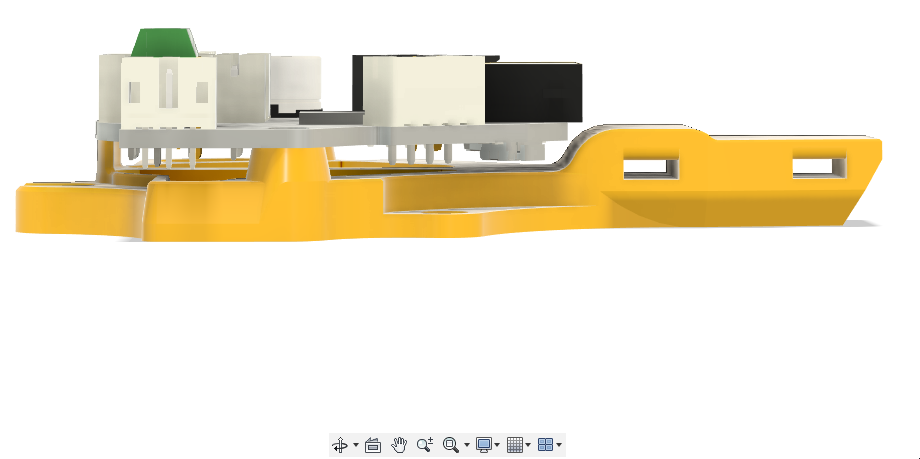

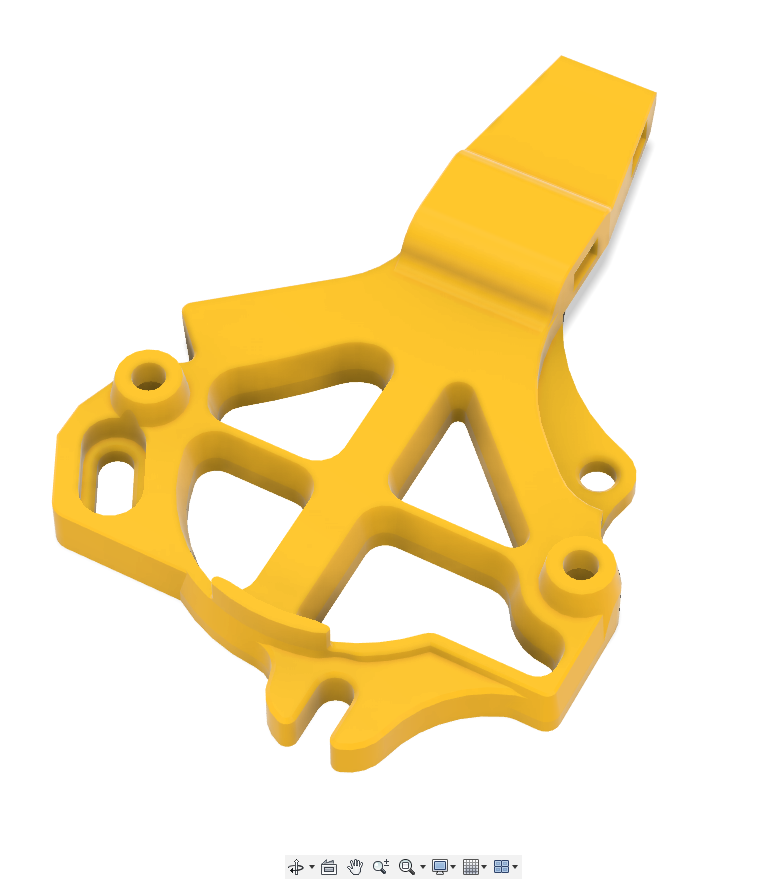

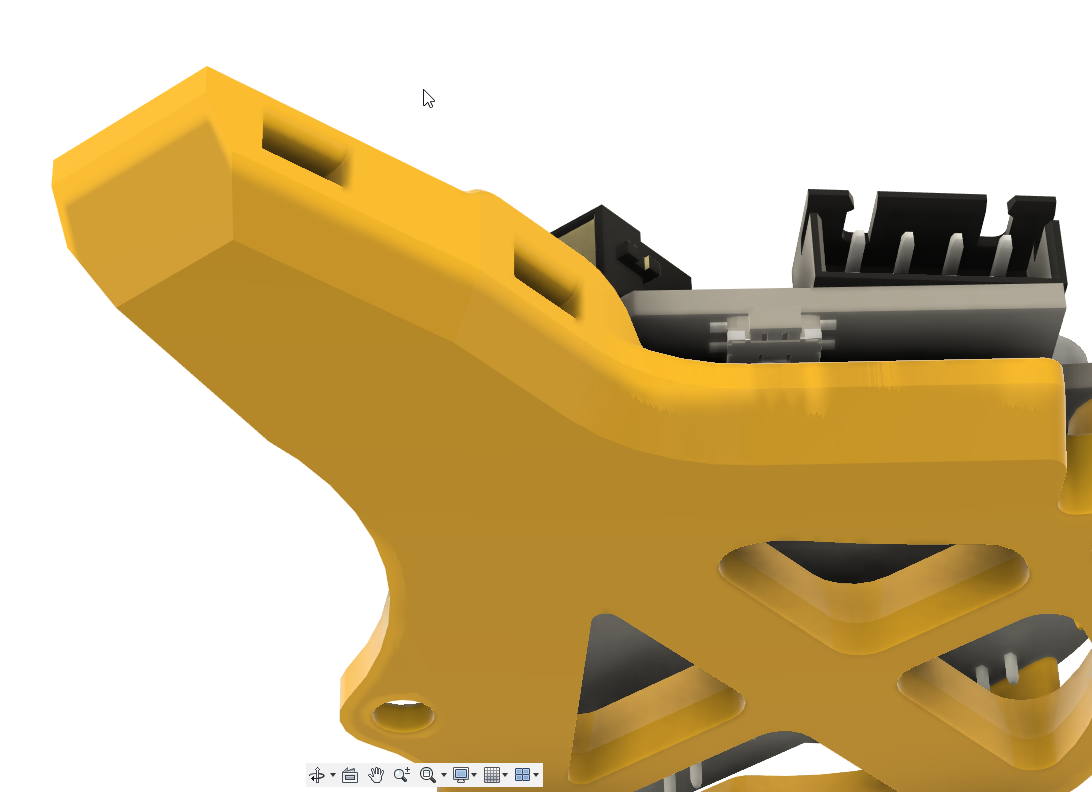

Mount for installing a Bigtreetech BTT EBB36 GEN2 toolhead board on an A4T toolhead using a WWBMG extruder.
This is a remix of the original A4T THB mount from Armchair Heavy Industries and DW Tas. The original model was used mainly to get the hole pattern and part of the shape right, then modified to fit the EBB36 GEN2 board and the WWBMG extruder setup.
Features
Designed specifically for A4T toolhead + WWBMG extruder combo. Mounting pattern adapted for BTT EBB36 GEN2. Keeps connectors accessible for easier wiring and maintenance. Uses the same toolhead mounting points as the original A4T mount (no special hardware required).
Printing recommendations
Material: ABS/ASA/PCCF… (recommended for higher temperatures around the toolhead). Layer height: ~0.2 mm 3–4 perimeters, ~30–40% infill Print flat on the back side with no support
Assembly
Bolt the EBB36 GEN2 to the mount with M3 screws (and washers if needed). Attach the mount to the A4T toolhead as you would the original board mount. Install/route wiring and connect to the WWBMG extruder as usual.
Credits
Original A4T mount by Armchair Heavy Industries and specialy to DW Tas, a creator of [A]nother [4]010 [T]toolhead and many other clever designs https://github.com/Armchair-Heavy-Industries/A4T
Shoutout to @AlphaAnt for the EBB36 GEN2 v1 3D model used as a reference: https://www.printables.com/model/1468767-ebb36-gen2-v10-mockup/files
Design and description by B A , licensed CC-BY-SA.
Frequently asked
How long does shipping take?
WWBMG Bigtreetech BTT EBB36 GEN2 A4T toolhead mount is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
