WYZE CAM (V3+) 20° & 45° Window Mount
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~34 g
- Print time
- ~1.9 h
- Express shipping
- $20
More information
Model originally created by me on Thingiverse at https://www.thingiverse.com/thing:6569380
Concept A window mount for WYZE CAM V3 and V4 (Standard and Pro models supported)
Usage
You will need to print: - [1x] WYZE Cam V3+ XX° Angled Window Mount (replace XX with the angle you want) - [1x] WYZE Cam V3+ Window Mount Cap
You will also need at least 2 small strips of double side tape for sticking the mount onto the window (optional if using the camera's built-in stand).

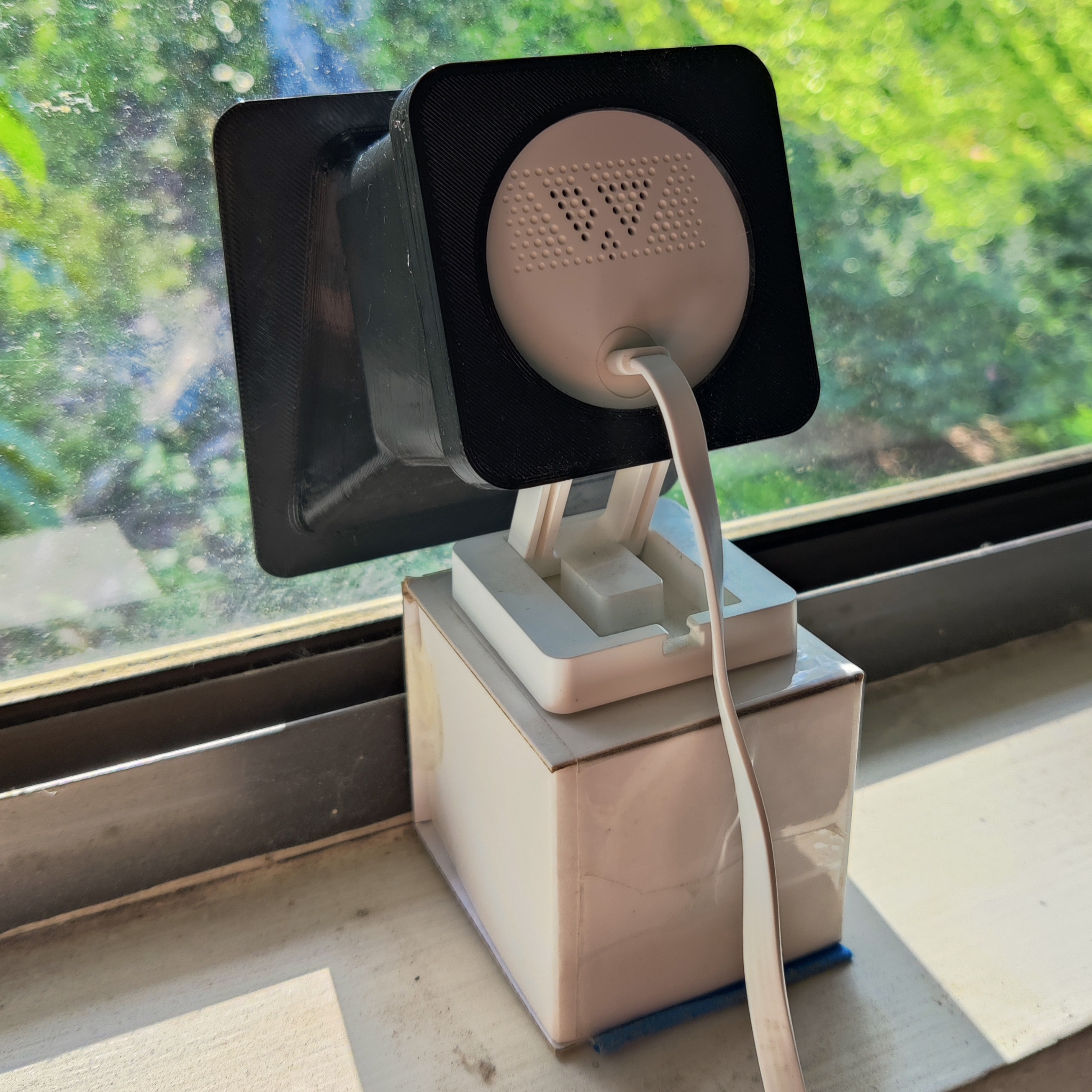

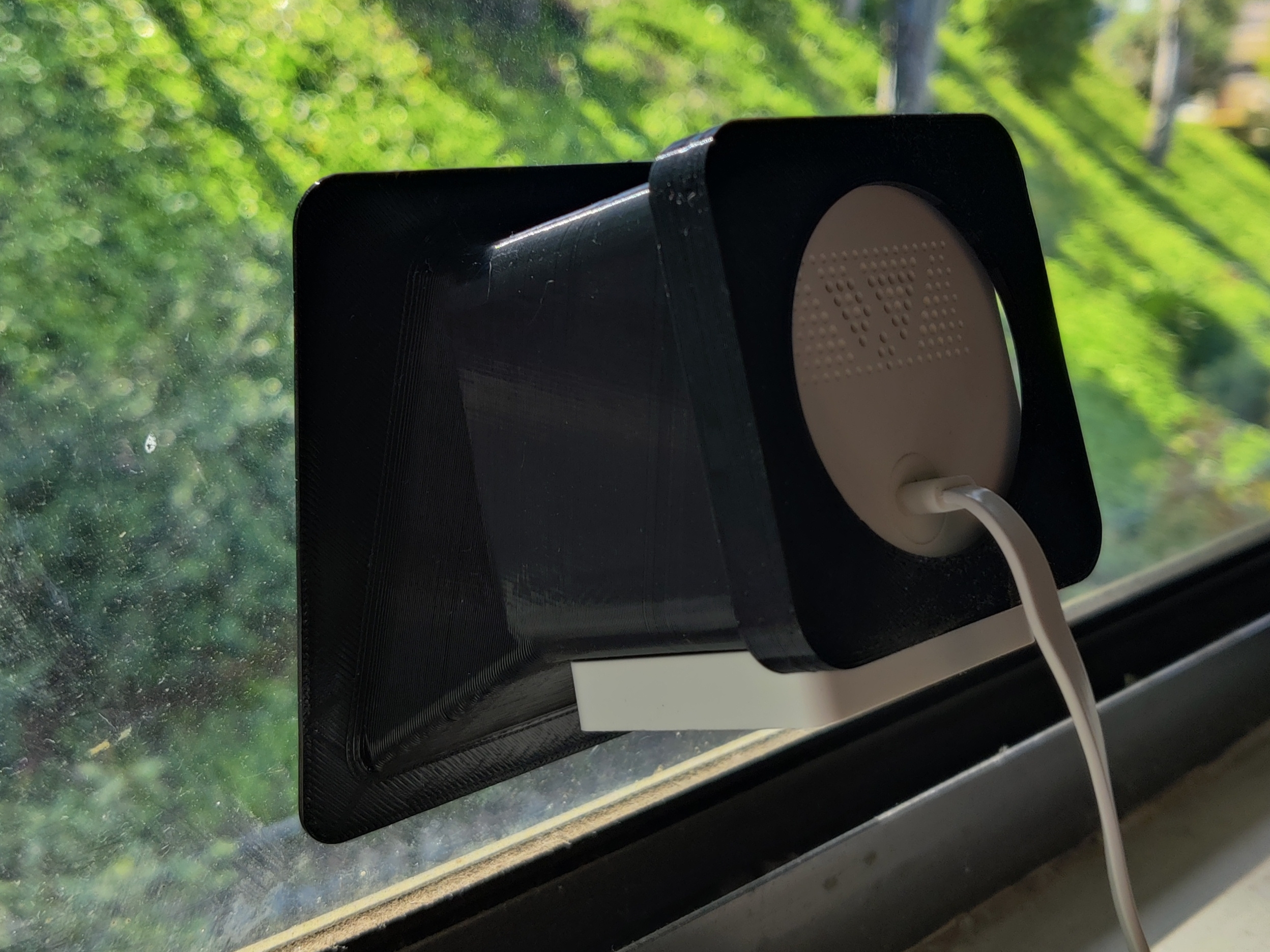

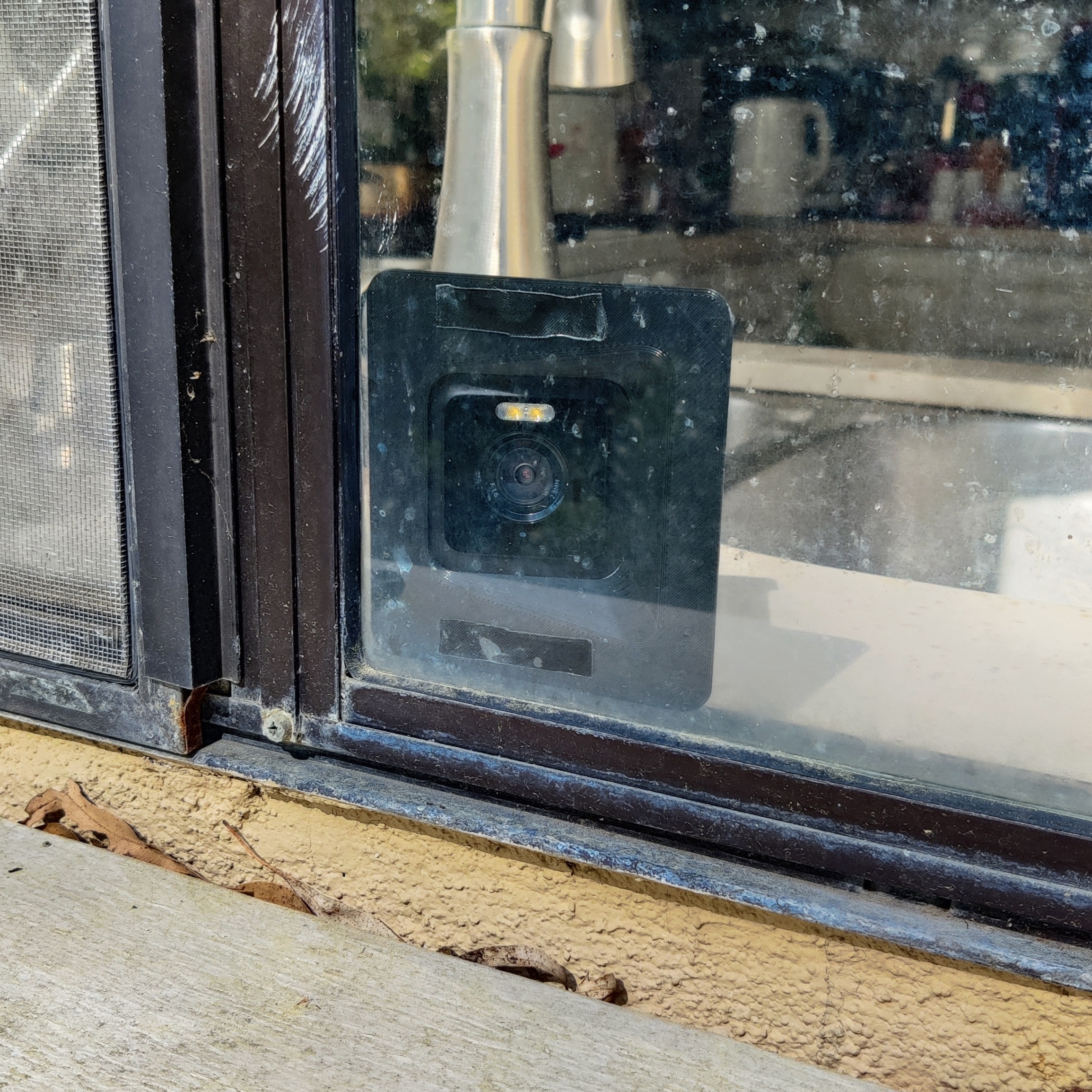

To use: Pull out the camera stand slightly and slide the camera into the mount depending on the angle you want. Notice that there are only two ways you can fit the camera in, you can flip the camera's view in the WYZE app. Put the cap on first, and then connect power.
Updates
2024.04.07 - Initial release. - NEW: WYZE Cam V3 20 Angled Window Mount v10 - NEW: WYZE Cam V3 20 Angled Window Mount Cap v3
2024.08.08 - Minor changes and 45° angle request - UPDATE+RENAME: WYZE Cam V3 20 Angled Window Mount v10 to v11 (renamed to WYZE Cam V3+ 20° Angled Window Mount) - UPDATE+RENAME: WYZE Cam V3 20 Angled Window Mount Cap v3 to v4 (renamed to WYZE Cam V3+ Window Mount Cap) - NEW: WYZE Cam V3+ 45° Angled Window Mount v2
History I was requested to make a window mount after seeing the cost for one from Amazon (such as this one: https://www.amazon.com/dp/B0C4H6XNVW). The 45° angle version was requested by a user, I have not tested it yet.
My Print Settings Rafts: No Supports: Check part notes Resolution: 0.12 ~ 0.28 Infill: 15% ~ 100% Filament: SUNLU PLA Black
Notes
WYZE Cam V3+ 20° Angled Window Mount - Print with the "window" flat on the bottom. Supports are required.
WYZE Cam V3+ 45° Angled Window Mount - Print with the "window" flat on the bottom. Supports are required. UNTESTED
WYZE Cam V3+ Window Mount Cap - Print with the flat side on the bottom. Supports are optional.
The filenames are misleading, as it was originally designed for just the V3, but all V3 and V4 cameras will work.
Also, the names of the files are slightly different, as they do not support the degrees [ ° ] symbol
Design and description by robonxt , licensed CC-BY.
Frequently asked
How long does shipping take?
WYZE CAM (V3+) 20° & 45° Window Mount is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
